Introduction

Music is a universal language, and for some people, it is an integral part of everyday life. Whether you are a professional musician, a music enthusiast or just an occasional listener, you want to experience the best quality sound from your music source. That’s where amplifiers come in. Here are four Phono Amplifier Circuit Diagrams are presented.

Phono amplifiers or preamps are an essential component of any turntable setup. They act as an intermediary between the turntable and the amplifier, boosting the phono signal from the cartridge to line level, which can be better reproduced by the amplifier. An ideal phono amplifier should have a low noise level, high gain, and flat frequency response to reproduce the phono signal accurately.

In this article, we’ll delve into the LM380 phono amplifier, its features, and how it can be used to enhance the sound quality of turntables.



Circuit Diagram of Phono Amplifier Circuit Diagrams

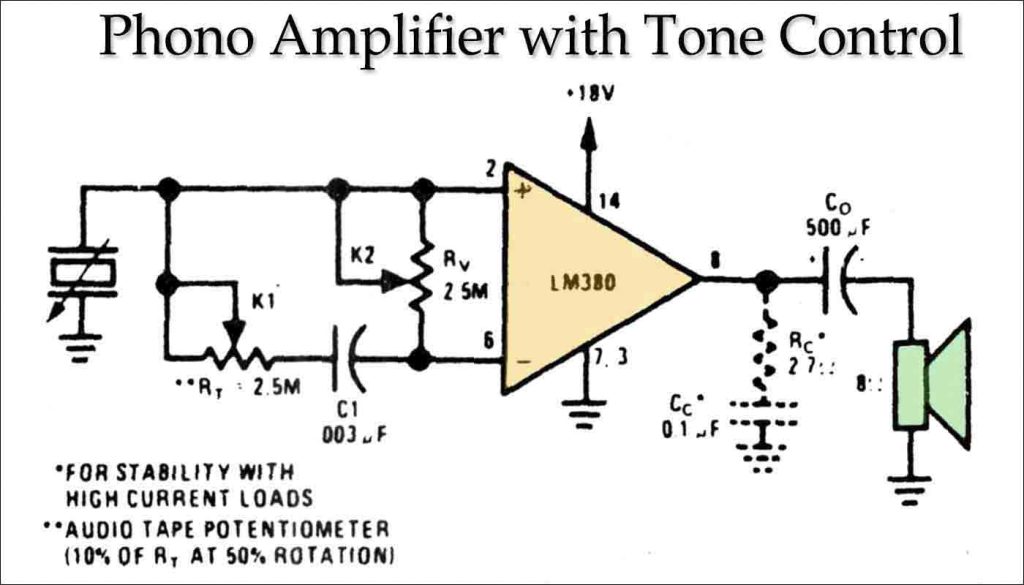

Phono Amplifier with Tone Control Circuit Diagram
Phono Amplifier with Tone Control Circuit Diagram

More Circuit Layouts

Features of LM380 Phono Amplifier

The LM380 is a popular audio amplifier IC that has been used in various applications, including phono amplifiers. It is a versatile device that can handle a wide range of circuit design requirements. Here are some of the features of LM380 phono amplifier:

  • Low Noise Level: The LM380 phono amplifier offers a low noise level, which is crucial for amplifying the low-level phono signal from the cartridge. The low noise level ensures that you get a clean, noise-free sound from your turntable.





  • High Gain: The LM380 offers high gain, which is necessary for boosting the low-level phono signal to line level. The high gain ensures that the phono signal is amplified without compromising the quality and clarity of the sound.
  • Flat Frequency Response: The LM380 phono amplifier offers a flat frequency response, which means that it can accurately reproduce the entire frequency range of the phono signal. This feature ensures that you get a well-balanced, natural-sounding music output.
  • Flexible Input Configuration: The LM380 phono amplifier offers a flexible input configuration, which allows you to match it with various cartridge types to achieve the best sound quality. The input configuration can be changed by adjusting the resistor values in the circuit.

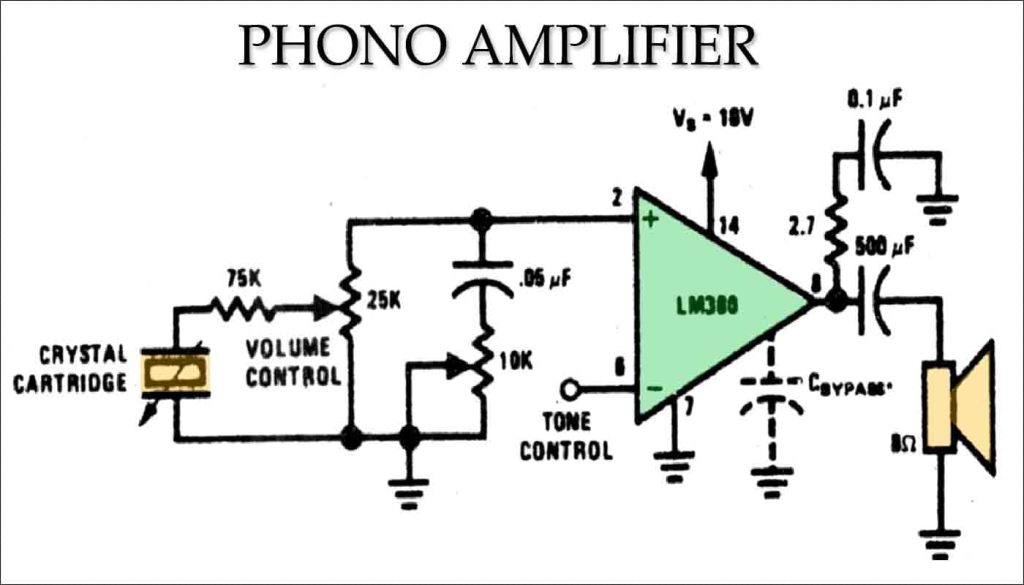

Phono Amplifier Circuit Diagram
Phono Amplifier Circuit Diagram



Using LM380 Phono Amplifier for Turntable Setup

Using the LM380 phono amplifier in a turntable setup is relatively simple. Here are the steps on how to use it:

  • Build the LM380 Phono Amplifier Circuit: You can find many simple LM380 phono amplifier circuit designs online. Build the circuit according to the instructions, and ensure that the resistor and capacitor values match your cartridge type.
  • Connect the Phono Amplifier to the Turntable and Amplifier: Connect the output of your turntable to the input of the phono amplifier using a set of RCA cables. Connect the output of the phono amplifier to the input of your amplifier or receiver.
  • Set the Gain Level: Adjust the gain level of the LM380 phono amplifier to match the output of your turntable. Set the gain level too low, and you will get a weak signal, set it too high, and you risk overloading your amplifier. You can use a multimeter to measure the voltage output of your turntable and adjust the gain accordingly.
  • Enjoy High-Quality Sound: Once you’ve set up your LM380 phono amplifier, sit back and enjoy high-quality sound from your turntable. The LM380 phono amplifier will ensure that you get a clean, noise-free sound with excellent detail and clarity.
Phono Amplifier Max-Input Impediance Circuit Diagram
Phono Amplifier Max-Input Impediance Circuit Diagram



Note:- Use the below amplifier when maximum input impedance is required or the signal attenuation of the voltage divider volume control is undesirable.

More Circuit Layouts

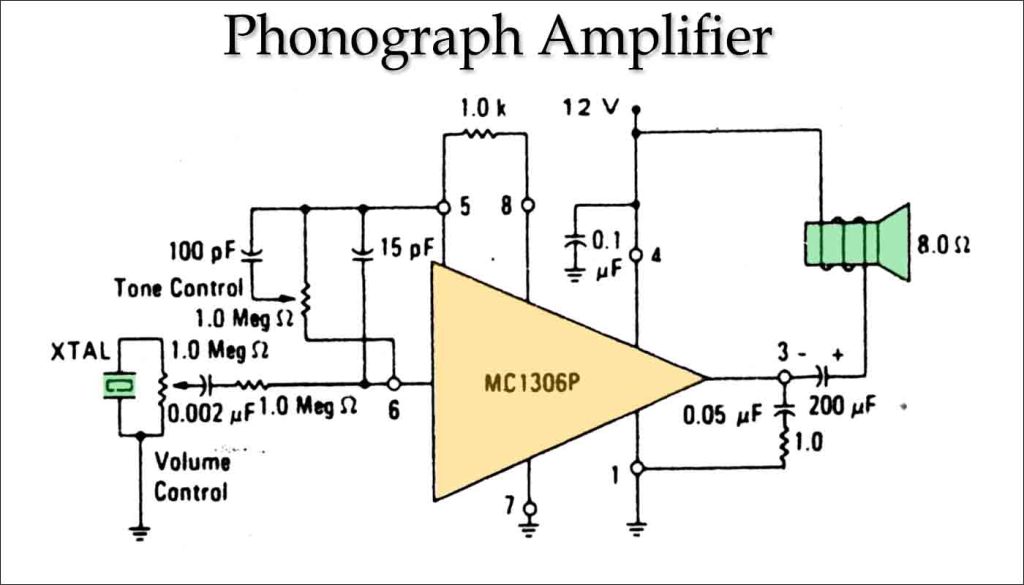

Phono Amplifier Ceramic Cartridge
Phono Amplifier (Ceramic Cartridge) Circuit Diagram



Conclusion

In conclusion, the LM380 phono amplifier is an excellent choice for adding to any turntable setup. It provides a low noise level, high gain, and flat frequency response, ensuring you get an accurate, natural-sounding music output. When building your LM380 phono amplifier circuit, ensure that you choose the right resistor and capacitor values to match your cartridge type. Once you’ve set up your phono amplifier, you can sit back and enjoy high-quality sound from your turntable for years to come.
