BD680 Pinout, Equivalent, Applications, Datasheet

The BD680 is a high-gain PNP Darlington transistor in a TO-126 package, widely used in medium-power amplification and switching. This guide explains BD680 pinout, datasheet, working, and practical applications.

Introduction to BD680 PNP Transistor

The BD680 is a PNP Darlington power transistor designed for medium-power amplification and efficient switching applications. Known for its high current gain and strong thermal stability, BD680 is ideal for audio amplifier output stages, power controllers, and voltage regulation circuits.

Packaged in a TO-126 casing, BD680 offers compact size with excellent heat dissipation and durability. Its Darlington configuration — consisting of two internally connected PNP transistors — provides extremely high current gain, allowing large output current from a very small base drive.

In circuits, BD680 is typically used in complementary pair configurations with its NPN counterpart BD679, enabling balanced push-pull performance in amplifier and control systems.

BD680 PNP Transistor

Pinout of BD680

Understanding the BD680 Pinout Configuration

The BD680 pinout is designed for simplicity and compatibility with most PNP Darlington transistor circuits. Proper identification of the pins ensures reliable performance and safe circuit integration.

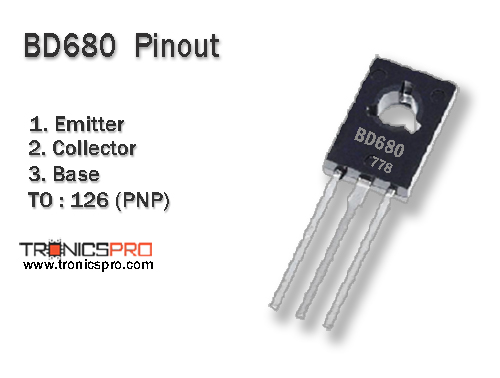

Pin Configuration of BD680 Pinout

Key Features of BD680 Transistor

• PNP Darlington configuration for high gain and performance
• High collector current handling up to 4A
• Low base current requirement for efficient switching
• Excellent thermal and electrical stability
• Suitable for medium-power linear and switching circuits
• Complementary to BD679 (NPN) transistor
• Compact TO-126 package with good heat dissipation
• Ideal for audio and control circuit applications

BD680 Transistor Datasheet and Specifications

• Collector-Emitter Voltage (Vceo): -80 V
• Collector-Base Voltage (Vcbo): -80 V
• Emitter-Base Voltage (Vebo): -5 V
• Collector Current (Ic): -4 A
• Power Dissipation (Ptot): 40 W
• DC Current Gain (hFE): 750 minimum
• Transition Frequency (fT): 3 MHz typical
• Junction Temperature (Tj max): 150 °C
• Polarity: PNP
• Package: TO-126

According to the BD680 transistor datasheet, the device provides excellent balance between voltage, current, and gain, making it suitable for audio output, driver circuits, and industrial amplifiers. Its -80V rating and high gain allow efficient control of larger loads.

Working Principle of BD680 PNP Transistor

The BD680 transistor works as a Darlington pair, where two PNP transistors are internally connected for extremely high current amplification.

When a small negative base current is applied, the transistor allows a much larger current to flow from the emitter to collector, amplifying the signal efficiently.

Because of its Darlington structure, BD680 has a high input impedance and low saturation voltage, making it perfect for signal amplification, switching, and current control in power and audio applications.

More Circuit Layouts

Typical Applications of BD680

• Audio amplifier output and driver stages
• Voltage regulator and control modules
• Relay and solenoid switching
• Motor control and speed regulation circuits
• Power amplifiers in consumer electronics
• Complementary push-pull configurations with BD679
• Industrial control and automation systems

NPN Complementary Transistor

The NPN complementary transistor of BD680 is BD679.
They are designed as a matched pair for push-pull amplifier stages, ensuring full-wave operation. BD679 handles the positive half-cycle of a signal, while BD680 handles the negative half-cycle, resulting in linear amplification with minimal distortion.

Equivalent Transistors and Alternatives

Several equivalent PNP Darlington transistors can replace the BD680, depending on circuit requirements. These include:

Equivalent or Alternative Transistors:

• BD678 (lower voltage version)
• TIP127 (PNP Darlington, TO-220 package)
• MJE802 (medium-power PNP Darlington)
• 2N6043 (PNP Darlington transistor)

Always check voltage and current ratings before substitution to ensure safe and compatible operation in your circuit.

Comparison BD680 vs BD679 Complementary Transistors

The BD680 (PNP) and BD679 (NPN) are complementary Darlington transistors, designed for balanced operation in audio and power circuits.

BD680 conducts when its base is negative relative to the emitter, while BD679 conducts when its base is positive. Together, they form an ideal pair for push-pull configurations, ensuring complete signal reproduction across both waveform halves.

Both devices share similar voltage, current, and power ratings — making them an excellent complementary pair for medium-power amplifier stages and motor driver applications.

Frequently Asked Questions (FAQ)

What is the BD680 transistor used for?

BD680 is used in audio amplifiers, voltage regulators, and motor driver circuits where high current gain and low base drive are needed.

What type of transistor is BD680?

It is a PNP Darlington transistor designed for medium-power control and amplification.

What is the BD680 pin configuration?

Facing the flat side, the pins from left to right are Emitter (1), Collector (2), Base (3).

What is the complementary transistor for BD680?

The complementary transistor is BD679 (NPN).

Can I use TIP127 instead of BD680?

Yes, TIP127 can be used as an equivalent if your circuit supports TO-220 packages and similar current ratings.

Conclusion

The BD680 PNP Darlington transistor is a powerful and reliable choice for medium-power switching and amplifier applications. With its high current gain, excellent thermal stability, and -80V rating, it’s suitable for audio amplifiers, control modules, and power circuits.

When paired with BD679 NPN, it delivers efficient and distortion-free push-pull operation in amplifier designs, making this complementary pair ideal for both industrial and consumer electronics.
