2N5301 Pinout, Equivalent, Application, Datasheet

The 2N5301 transistor is a high-power NPN silicon transistor designed for switching and amplifier applications requiring high current capacity and robust power handling. The 2N5301 pinout defines the lead arrangement of this high-performance NPN silicon transistor housed in a TO-3 metal case, it can deliver up to 30A collector current and 200W total power dissipation, making it ideal for power amplifiers, inverter stages, and DC motor control circuits.

Introduction to 2N5301 NPN Transistor

The 2N5301 is a silicon NPN bipolar junction transistor (BJT) specifically designed for high-current and high-power applications. It operates with a maximum collector-emitter voltage of 40V and can safely handle 30A of continuous current, providing excellent thermal and electrical performance.

The TO-3 metal package ensures efficient heat dissipation during operation, making the 2N5301 transistor suitable for industrial control equipment, audio power amplifiers, and switch-mode power supplies (SMPS). This transistor is known for high current gain, low saturation voltage, and excellent durability under demanding load conditions.

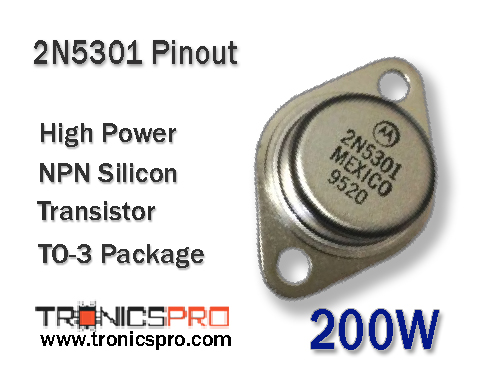

2N5301 NPN Transistor

Pinout of 2N5301

Understanding the 2N5301 Pinout Configuration

The 2N5301 transistor pinout in the TO-3 package follows a Base–Emitter–Collector (Case) configuration, where the metal case itself serves as the Collector terminal.

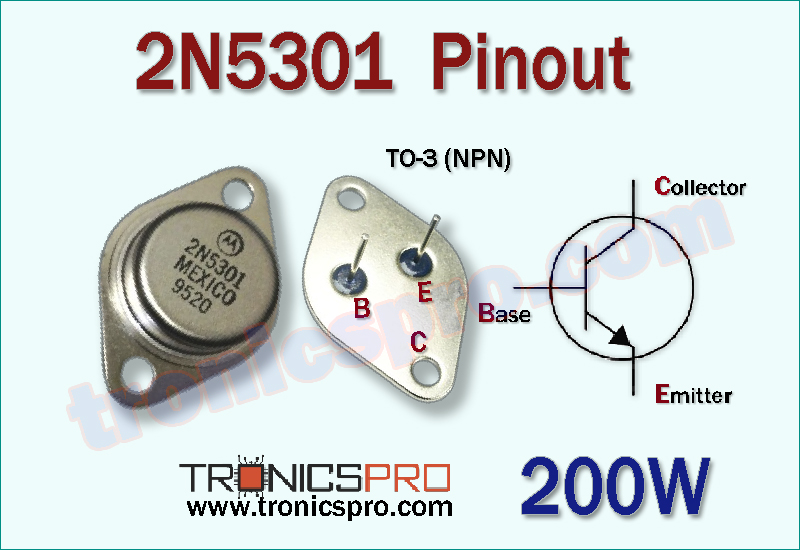

Pin Configuration of 2N5301 Pinout

Key Features of 2N5301 Transistor

• High-current NPN power transistor for switching and amplification
• Designed for up to 30A continuous collector current
• 200W total power dissipation capability
• Low collector-emitter saturation voltage for efficient switching
• High gain stability over varying loads
• TO-3 metal package for superior heat conduction
• Rugged and reliable design for industrial and power applications
• Excellent thermal stability under high current conditions

2N5301 Transistor Datasheet and Specifications

• Transistor Type: NPN Silicon
• Collector–Emitter Voltage (Vce): 40 V
• Collector–Base Voltage (Vcb): 40 V
• Emitter–Base Voltage (Veb): 5 V
• Collector Current (Ic): 30 A
• Power Dissipation (Ptot): 200 W
• DC Current Gain (hFE): 15 – 100 (typical range)
• Junction Temperature (Tj): 200°C (max)
• Thermal Resistance (RθJC): 0.875 °C/W
• Package Type: TO-3 Metal Case
• Pin Configuration: Base – Emitter – Collector (Case)

Working Principle of 2N5301 NPN Transistor

The 2N5301 NPN transistor functions as a current-controlled switch or amplifier. When a small base current is applied, it allows a much larger current to flow from the collector to the emitter. This makes it ideal for driving heavy loads, power conversion circuits, and amplification stages that require high current handling.

Its low collector-emitter saturation voltage (Vce(sat)) ensures efficient switching performance with minimal power loss, while its robust construction provides high reliability in industrial and high-power electronic systems.

More Circuit Layouts

Typical Applications of 2N5301

• High-power audio amplifier circuits
• DC motor control and driver circuits
• Inverter and converter circuits
• Switch-mode power supply (SMPS) output stages
• Industrial control systems
• Relay and solenoid driver circuits
• Battery charger and power distribution modules

Mounting and Thermal Considerations

The TO-3 package of the 2N5301 transistor provides excellent thermal conduction and mechanical stability. When mounting on a metal heat sink, it is essential to use thermal grease or a mica insulator to enhance heat transfer and prevent electrical shorting. Maintaining good thermal management ensures maximum reliability and extended transistor life.

Frequently Asked Questions (FAQ)

What is the 2N5301 transistor used for?

It’s used in high-current switching, DC motor control, and power amplifier circuits.

What is the 2N5301 pinout?

In the TO-3 package, the pinout is Base–Emitter–Collector (Case).

How much current can the 2N5301 handle?

It can handle up to 30A collector current continuously.

What is the maximum power dissipation of the 2N5301?

It can dissipate up to 200 watts with proper heat sinking.

Is the 2N5301 suitable for linear amplifier use?

Yes, it performs well in linear high-current amplifier and audio power applications.

Conclusion

The 2N5301 NPN power transistor is a high-current, high-power device built for switching and amplifier applications requiring strength and stability. With its 40V voltage rating, 30A current capacity, and 200W power dissipation, it’s an excellent choice for industrial, audio, and power supply circuits.

Its rugged TO-3 package, excellent thermal stability, and low saturation characteristics make it one of the most reliable transistors for demanding power applications.

Datasheet & Pinout of 2N5301 NPN Transistor

Click the following Button to download the datasheet of 2N5301 Transistor :
