BD246 Pinout, Equivalent, Applications, Datasheet

The BD246 pinout is an essential reference for technicians and engineers who work with power transistors in amplifier or driver circuits. The BD246 is a PNP silicon power transistor housed in a TO-3PN (TO-218) package, designed for medium-voltage, high-current applications. It delivers dependable switching and amplification performance, making it a popular choice for audio output stages, motor control, and regulated power supplies.
This device is the complementary counterpart of the BD245 NPN transistor, together forming a high-efficiency push-pull amplifier pair.

Introduction to BD246 PNP Transistor

The BD246 transistor is a power PNP device tailored for circuits requiring high current and low saturation voltage. Its PNP polarity allows conduction when the base is biased negatively relative to the emitter, making it ideal for handling the negative half-cycles of AC signals in amplifier configurations.

Engineers value the BD246 for its strong thermal performance, wide linear region, and ability to sustain heavy loads. It remains a standard component for power amplifiers, audio systems, and industrial motor drivers, thanks to its consistent gain and durability.

BD246 PNP Transistor

Pinout of BD246

Understanding the BD246 Pinout Configuration

Correct identification of the BD246 pinout is crucial during circuit design and installation. When viewed from the front (metal tab or marking side facing you, leads downward), the pin sequence is Base – Collector – Emitter (BCE). The metal tab is internally linked to the Collector, allowing direct heat dissipation through a heatsink.

Pin Configuration of BD246 Pinout

Key Features of BD246 Transistor

• PNP medium-power transistor suitable for switching and amplification
• Rugged structure for high-current industrial applications
• Excellent thermal and electrical reliability
• Perfectly matched complementary device to BD245 NPN transistor
• Stable gain across wide temperature ranges
• Ideal for push-pull or class-AB amplifier stages
• Suitable for linear and pulse-mode operations

BD246 Transistor Datasheet and Specifications

• Collector–Emitter Voltage (Vce): 45 V
• Collector–Base Voltage (Vcb): 55 V
• Emitter–Base Voltage (Veb): 5 V
• Collector Current (Ic): 10 A
• Power Dissipation (Pc): 80 W
• DC Current Gain (hFE): 40 – 160 (typical range)
• Package Type: TO-3PN / TO-218
• Polarity: PNP
• Pin Configuration: Base – Collector – Emitter
• Junction Temperature (Tj): 150 °C

Working Principle of BD246 Transistor

As a PNP transistor, the BD246 conducts when a small current flows out of its base terminal, permitting a larger current between collector and emitter. It acts as a current amplifier or a power switch, depending on circuit requirements.

In a push-pull amplifier, the BD246 handles the negative half of the waveform, complementing the BD245 NPN that handles the positive half. This balance minimizes distortion and enhances output efficiency. Its TO-3PN casing enables effective heat transfer, ensuring consistent operation under high-power loads.

More Circuit Layouts

Typical Applications of BD246

• Audio output and power amplifier circuits
• DC motor and actuator control systems
• Voltage regulators and battery chargers
• Relay, solenoid, and lamp driver circuits
• Power inverters and UPS systems
• Complementary push-pull stages
• Industrial automation equipment

NPN Complementary Transistor

The BD245 is the NPN complementary of the BD246. Both devices share identical electrical ratings but with opposite polarities, making them ideal for paired amplifier and driver circuits. Together they deliver balanced signal processing and superior efficiency in high-power designs.

Equivalent Transistors and Alternatives

• BD244 (PNP, similar range)
• TIP42C
• 2N6491
• MJE2955T
• MJ2955 (for alternative high-power circuits)

Comparison Summary: BD246 vs BD245

When comparing BD246 vs BD245, both transistors share the same voltage, current, and power parameters but differ in conduction type. The BD246 is a PNP transistor, conducting when the base is negative relative to the emitter, whereas the BD245 is an NPN transistor, conducting when the base is positive.

In a push-pull amplifier, BD246 handles the negative waveform, while BD245 manages the positive waveform, creating smooth, distortion-free signal amplification. Both provide excellent gain stability, reliable heat handling, and robust performance, making them a popular complementary pair for medium-power amplifier systems and switching networks.

Frequently Asked Questions (FAQ)

What is the BD246 transistor used for?

It is used in audio amplifiers, motor drivers, and power regulators for high-current applications.

What package type does BD246 use?

It comes in a TO-3PN / TO-218 power package.

What is the BD246 pin configuration?

It follows the Base – Collector – Emitter (BCE) sequence.

What is the complementary transistor for BD246?

The BD245 NPN transistor complements BD246.

Can BD246 be used in amplifier circuits?

Yes, BD246 is ideal for class-AB push-pull audio amplifier stages.

Conclusion

The BD246 PNP power transistor is a versatile, reliable component for high-current amplification and switching systems. With a robust 10 A collector current and 80 W dissipation capacity, it provides exceptional stability and long service life. When paired with the BD245 NPN, it forms an efficient complementary set for push-pull audio amplifiers and motor control circuits.

Its sturdy construction, consistent gain, and excellent thermal endurance make the BD246 a dependable choice for designers seeking performance and reliability in demanding electronic applications.

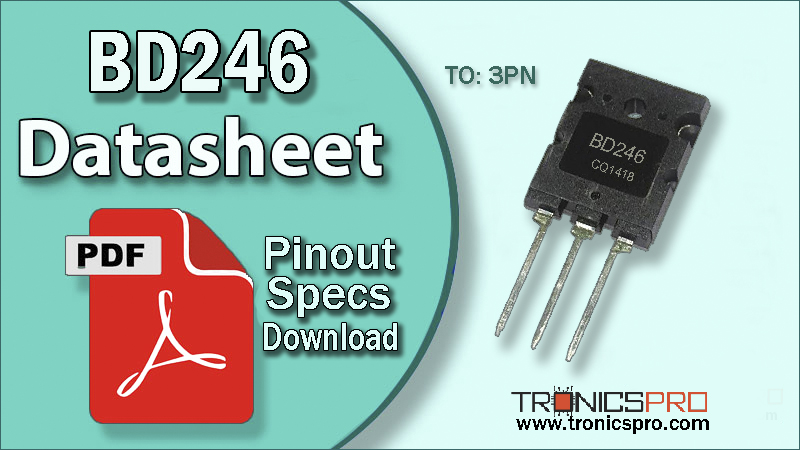

Datasheet & Pinout of BD246 NPN Transistor

Click the following Button to download the datasheet of BD246 Transistor :
