The BD908 pinout and transistor details are crucial for anyone working with high-power audio amplifier or switching designs. The BD908 is a PNP silicon power transistor designed for medium-to-high current applications, typically used alongside its NPN complementary pair BD907. Known for its high reliability and excellent current handling capacity, it is a popular choice among electronics engineers and audio circuit designers.
Introduction to BD908 PNP Transistor
The BD908 is a PNP power transistor with high power dissipation capability, offering a maximum collector-emitter voltage (Vce) of 60 V, a collector current (Ic) of 15 A, and a power dissipation (Ptot) of 90 W. It comes in a TO-220 package, providing excellent heat dissipation through its metal tab, which allows it to handle large amounts of power without overheating.
This transistor is widely used in audio output stages, DC motor controls, and power amplifier circuits where symmetrical operation with an NPN counterpart is needed. It delivers stable operation, low distortion, and reliable performance even in demanding environments.
BD908 PNP Transistor
Pinout of BD908
Understanding the BD908 Pinout Configuration
Like most TO-220 packaged transistors, the BD908 pinout follows a simple and easy-to-remember configuration. Knowing the correct order of pins helps prevent wiring mistakes during circuit design or prototyping.

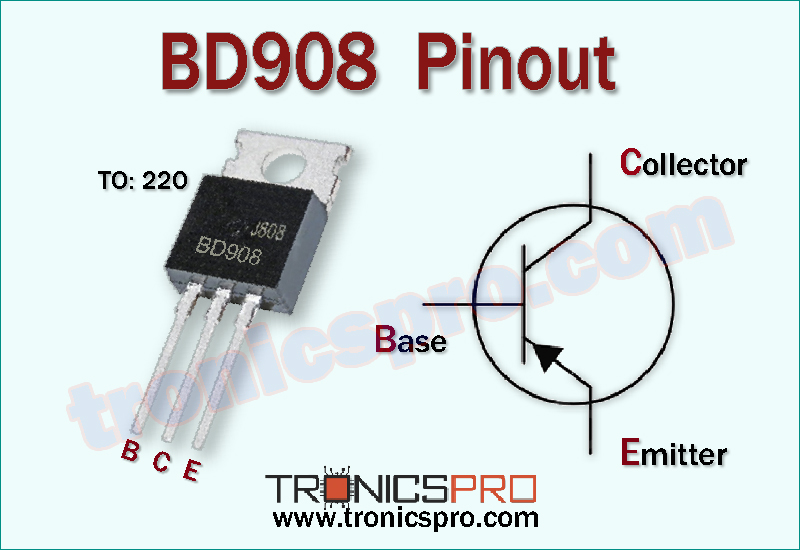

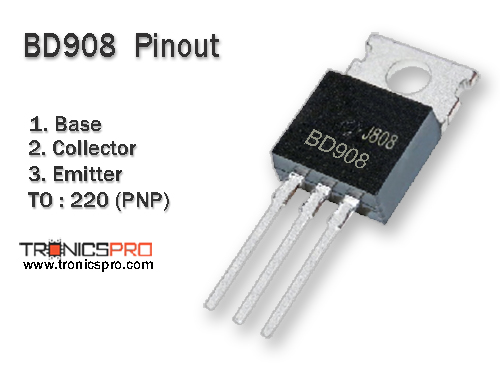

Pin Configuration of BD908 Pinout
| Pin# | Pin Name | Pin Description |
|---|---|---|
| 1 | Base | Controls transistor biasing |
| 2 | Collector | Connected to the load/output |
| 3 | Emitter | Usually connected to ground or negative supply |
Key Features of BD908 Transistor
- PNP silicon power transistor
- High current gain with fast response
- Maximum collector current of 15 A
- Power dissipation up to 90 W
- Suitable for audio amplifier output stages
- Excellent linearity and low distortion
- TO-220 package for efficient thermal handling
BD908 Transistor Datasheet and Specifications
- Collector-Emitter Voltage (Vce): 60 V
- Collector-Base Voltage (Vcb): 60 V
- Emitter-Base Voltage (Veb): 5 V
- Collector Current (Ic): 15 A
- Power Dissipation (Ptot): 90 W
- DC Current Gain (hFE): 40 – 250
- Transition Frequency (fT): 3 MHz
- Operating Junction Temperature (Tj): 150 °C
- Package Type: TO-220
These specifications highlight the BD908’s excellent balance between voltage, current, and power handling, making it a dependable choice for robust amplifier and power control circuits.
Working Principle of BD908 Transistor
The BD908 PNP transistor works by controlling the flow of current between the collector and emitter through a smaller current applied at the base. When a small negative current enters the base relative to the emitter, a much larger current flows from the emitter to the collector.
In amplifier circuits, it operates in the active region to provide signal amplification, while in switching applications, it alternates between saturation and cutoff states. When used in complementary push-pull configurations with the BD907 NPN transistor, it ensures high efficiency and clean audio signal reproduction.
More Circuit Layouts
Typical Applications of BD908
- Audio power amplifiers (Class-B or AB)
- DC motor drivers
- Power switching circuits
- Relay and solenoid control
- Voltage regulator and inverter circuits
- Complementary output stages with BD907
NPN Complementary Transistor
The NPN complementary transistor of BD908 is BD907.
Both are designed to work together in push-pull amplifier or symmetrical driver circuits, where the BD907 handles the positive half cycle and BD908 handles the negative half cycle of the waveform. This pairing provides high output power and efficient thermal balance.
Equivalent Transistors and Alternatives
The following transistors can be used as alternatives or replacements for BD908, depending on voltage and package compatibility:
- BD912
- TIP36C
- MJ2955
- 2N2955
- BD248C
Always check for equivalent voltage, gain, and package type before substituting to ensure safe and reliable operation.
BD908 vs BD907 Comparison
The BD908 is a PNP transistor, while the BD907 is its NPN counterpart. Both share identical power ratings of 90 W, with the same collector-emitter voltage (60 V) and collector current (15A).
In amplifier circuits, the BD907 handles the positive swing of the signal, whereas the BD908 conducts during the negative swing. This complementary relationship allows both devices to function efficiently in Class-B and Class-AB amplifier designs, ensuring low crossover distortion and improved performance.
Frequently Asked Questions (FAQ)
What is the BD908 transistor used for?
It is used in audio amplifiers, power regulators, and switching circuits that require high-current PNP transistors.
What type of transistor is BD908?
BD908 is a PNP silicon power transistor designed for high-power output and switching applications.
What is the BD908 pin configuration?
It has three pins, Base (Pin 1), Collector (Pin 2), and Emitter (Pin 3), arranged in TO-220 format.
What is the complementary transistor for BD908?
The BD907 is the NPN complementary transistor for the BD908.
Can I use BD912 instead of BD908?
Yes, BD912 can often replace BD908 if the circuit’s voltage and power specifications are within range.
Conclusion
The BD908 transistor is a robust PNP silicon power device ideal for high-current amplifier and switching circuits. With its 60 V voltage, 15A current capacity, and 90 W power dissipation, it offers excellent performance, linearity, and thermal stability. When paired with the BD907 NPN transistor, it delivers balanced and distortion-free operation in push-pull audio amplifiers. For designers seeking a reliable power transistor, the BD908 remains a trusted and widely available component.
Datasheet & Pinout of BD908 NPN Transistor
Click the following Button to download the datasheet of BD908 Transistor :
