2N6101 Pinout, Equivalent, Application, Datasheet

The 2N6101 NPN transistor is a powerful, high-current device used in switching and audio power applications. If you’re searching for the 2N6101 pinout along with specifications, equivalents, and usage details, this complete guide covers everything needed for precise electronic design and replacement decisions.

Introduction to 2N6101 NPN Transistor

The 2N6101 is a rugged NPN bipolar power transistor designed for demanding electronic circuits where high current and high power dissipation are required. Operating with a collector-emitter voltage of 80V, collector-base voltage of 80V, and a robust 10A collector current, it is widely used in motor drivers, linear power stages, audio amplifiers, and switching power modules.

Its TO-220 package provides superior heat dissipation, allowing this transistor to deliver up to 75W under proper thermal conditions. Thanks to its solid electrical behavior, the 2N6101 is well suited for industrial and consumer-grade power electronics.

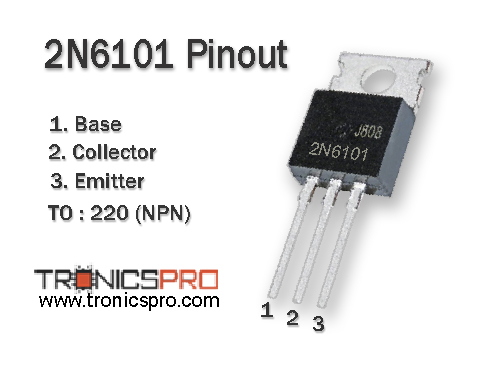

2N6101 NPN Transistor

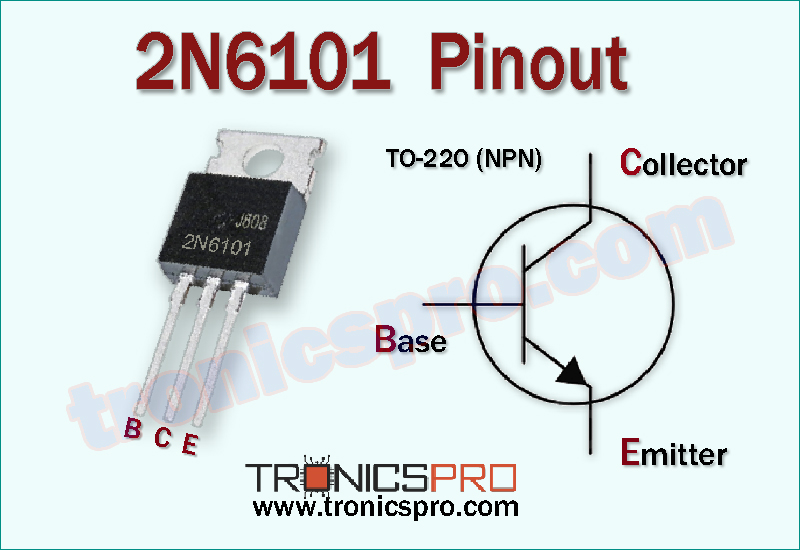

Pinout of 2N6101

Pin Configuration of 2N6101 Pinout

Understanding the 2N6101 Pinout Configuration

The 2N6101 pinout follows the classic B-C-E (Base-Collector-Emitter) sequence when viewed from the front of the TO-220 package. Correct wiring ensures efficient switching performance, maximum reliability, and protection against accidental damage.

Key Features of 2N6101 Transistor

• High current capability for heavy loads
• Rugged construction for industrial applications
• Fast switching response
• Designed for audio and power regulation circuitry
• Excellent thermal efficiency
• Reliable operation in both switching and linear modes

2N6101 Transistor Datasheet and Specifications

Collector-Emitter Voltage (Vce): 80 V
Collector-Base Voltage (Vcb): 80 V
Emitter-Base Voltage (Veb): 5 V
Collector Current (Ic): 10 A
Total Power Dissipation (Ptot): 75 W
DC Current Gain (hFE): 15–100 (typical range)
Transition Frequency (fT): Approx. 3 MHz
Package Type: TO-220
Pin Configuration: B-C-E
Transistor Type: NPN

Working Principle of 2N6101 Transistor

The 2N6101 NPN transistor uses a small current at its base to control a much larger current between collector and emitter. This makes it ideal for:

• Switching inductive loads
• Boosting audio signals
• Driving motors, relays, and solenoids
• Regulating power in power supplies

Thanks to its high-power capacity and stable gain, it performs exceptionally well in circuits requiring durability under continuous operation.

More Circuit Layouts

Applications of 2N6101 Transistor

• High-power audio output stages
• DC motor driver circuits
• Relay and solenoid control
• Switching regulators and SMPS
• Battery chargers
• Inverters and converters
• Industrial automation power stages

Equivalent and Alternative Transistors

Here are suitable replacements based on voltage, current, and package:

• 2N6099
• BD249C
• TIP3055
• BD911
• MJE15030
• 2N6284 (higher power alternative)

Always verify pinout and thermal requirements before substituting.

Frequently Asked Questions (FAQ)

What is the 2N6101 used for?

It is used for power switching, audio amplification, and motor control circuits.

What is the 2N6101 pinout?

The pinout is Base-Collector-Emitter (B-C-E).

Is 2N6101 NPN or PNP?

It is an NPN transistor.

What is the maximum current rating?

It can handle 10A continuous collector current.

What is its complementary transistor?

The complementary PNP is 2N6106.

Conclusion

The 2N6101 NPN power transistor is a robust and reliable choice for high-power switching and amplification. With 80V operation, 10A current capability, and 75W dissipation, it serves perfectly in industrial-grade circuits requiring high durability.

Understanding its 2N6101 pinout, specifications, and equivalent options ensures correct integration and optimal circuit performance.

Datasheet & Pinout of 2N6101 NPN Transistor

Click the following Button to download the datasheet of 2N6101 Transistor :
