TIP3055 NPN Transistor Pinout Datasheet

Introduction

The TIP3055 is a popular NPN power transistor widely used in linear amplification, audio output stages, voltage regulators, and power switching applications. It is designed to handle high current and voltage levels, making it suitable for industrial, automotive, and consumer electronics circuits. With a collector current rating of 15A and a maximum collector-emitter voltage of 60V, the TIP3055 is a robust and versatile transistor.

Encased in a TO-218 package, this transistor provides excellent thermal stability and power dissipation, allowing it to deliver up to 90W of total power dissipation when mounted on a proper heatsink. Its DC current gain (hFE) typically ranges from 20 to 70, making it suitable for both amplifier circuits and power control stages.

TIP3055 NPN Transistor

Thanks to its reliability, ruggedness, and widespread availability, the TIP3055 has become one of the most commonly used transistors in audio power amplifiers, motor drivers, SMPS, and power inverter circuits. It is also paired with its PNP complementary transistor, TIP2955, for push-pull configurations in class AB amplifier designs and other high-power applications.

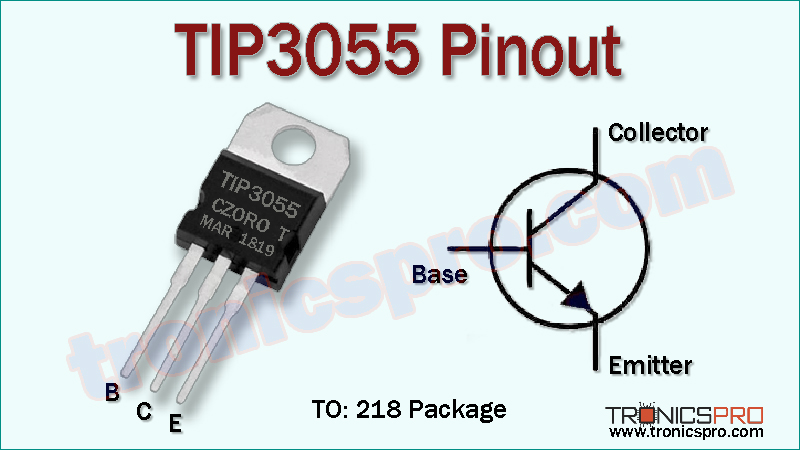

TIP3055 Pinout

TIP3055 Transistor Key Features

• High current handling capability (up to 15A).
• Rugged TO-218 package for improved power dissipation.
• Reliable performance in linear and switching applications.
• Widely used in amplifier and power regulation circuits.
• Cost-effective and easily available in the market.

Specifications/Characteristics of TIP3055 NPN Transistor

• Transistor Type: NPN
• Collector-Emitter Voltage (Vce): 60V
• Collector-Base Voltage (Vcb): 100V
• Emitter-Base Voltage (Veb): 7V
• Collector Current (Ic): 15A
• DC Current Gain (hFE): 20 – 70
• Power Dissipation (Ptot): 90W (with heatsink)
• Package Type: TO-218

TIP3055 Pin Configuration

More Circuit Layouts

Key Applications of TIP3055 NPN Transistor

• Audio power amplifier circuits
• Switching power supplies (SMPS)
• Inverter and UPS circuits
• DC motor driver circuits
• Battery chargers and regulators
• Relay and solenoid drivers

PNP Complimentary Transistor

TIP2955 (Power Transistor, TO-218) is the PNP complementary transistor of TIP3055.

Equivalent Transistors of TIP3055

• 2N3055 (classic TO-3 NPN power transistor)
• MJ2955 (PNP complement of 2N3055)
• BD249C (NPN power transistor alternative)
• TIP35C (higher voltage rating NPN transistor)
• MJ15015 (high power NPN transistor)

(Pin configuration of some transistors mentioned above may different from TIP3055).

Datasheet of TIP3055 NPN Transistor

Click the following Button below to download the datasheet of TIP3055 Transistor :
