2N6100 Pinout, Equivalent, Application, Datasheet

The 2N6100 NPN transistor is a robust, high-power device designed for switching, regulation, and amplification tasks. If you are looking for the 2N6100 pinout, detailed specifications, equivalents, and real-world applications, this complete guide provides everything needed for accurate circuit integration and design.

Introduction to 2N6100 NPN Transistor

The 2N6100 is a high-current NPN bipolar junction transistor housed in the reliable TO-220 package, ideal for industrial power switching and medium-to-high current amplifier stages. Offering a collector-emitter voltage (Vce) of 80V, collector-base voltage (Vcb) of 80V, and the ability to handle 10A of collector current, this transistor is perfectly suited for demanding loads.

With a strong 75W power dissipation rating, the 2N6100 NPN transistor delivers reliable performance in audio amplifiers, motor controllers, power supplies, and automation systems, making it a preferred component for rugged and continuous-duty applications.

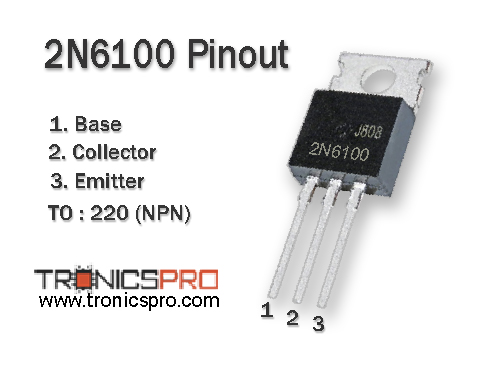

2N6100 NPN Transistor

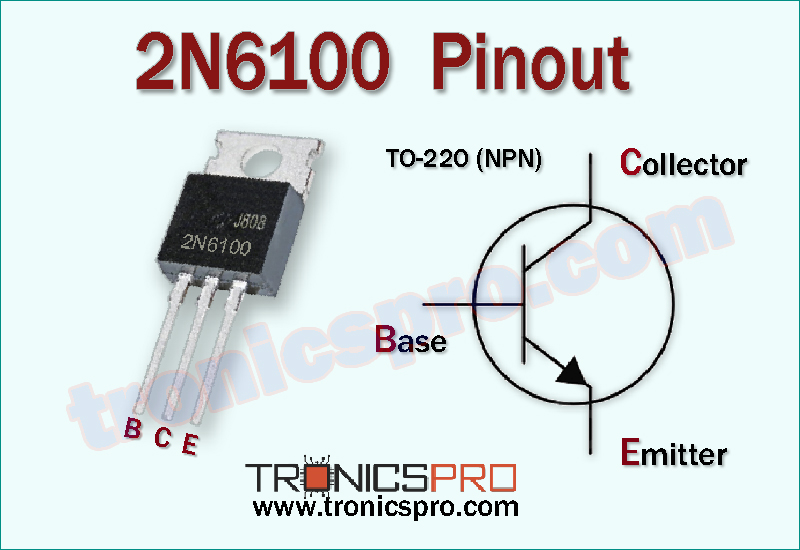

Pinout of 2N6100

Pin Configuration of 2N6100 Pinout

Understanding the 2N6100 Pinout Configuration

The 2N6100 pinout uses the common B-C-E arrangement (Base-Collector-Emitter) when facing the TO-220 package from the front. Proper understanding of the pin positions ensures correct and safe installation, preventing circuit faults and maximizing performance.

Key Features of 2N6100 Transistor

• High-current capability for demanding loads
• Reliable thermal handling with strong 75W dissipation
• Fast switching performance with stable gain
• Suitable for both linear and switching stages
• Strong durability in industrial environments
• Convenient TO-220 body for easy heat sinking

2N6100 Transistor Datasheet and Specifications

• Collector-Emitter Voltage (Vce): 80 V
• Collector-Base Voltage (Vcb): 80 V
• Emitter-Base Voltage (Veb): 5 V
• Collector Current (Ic): 10 A
• Power Dissipation (Ptot): 75 W
• DC Current Gain (hFE): 15–100 (typical range)
• Collector-Emitter Saturation Voltage: Low for efficient switching
• Transition Frequency (fT): approx. 3 MHz
• Package Type: TO-220
• Transistor Polarity: NPN

Working Principle of 2N6100 Transistor

The 2N6100 functions as a controlled current amplifier and switch. When a small current is applied to the base, it enables a much larger current to flow between the collector and emitter.

The device operates efficiently in:

• Active mode for signal amplification
• Cutoff/saturation for power switching
• Linear operation for audio and motor control

Because of its 10A capability and strong thermal endurance, the 2N6100 is well-suited for industrial power modules, automotive circuits, and AC/DC regulation systems.

More Circuit Layouts

Applications of 2N6100 Transistor

• High-power audio amplifier output stages
• Switching regulators and SMPS
• Motor and solenoid driver circuits
• Power control modules
• Industrial automation equipment
• Relay and lamp drivers
• Inverter and converter circuits

Equivalent and Alternative Transistors

These transistors may substitute the 2N6100, depending on circuit requirements:

• 2N6099
• BD249C
• TIP3055
• BD911
• MJE15030
• 2N6284 (higher power alternative)

Always check pinout, voltage, and thermal specifications before replacing.

Frequently Asked Questions (FAQ)

What is the 2N6100 transistor used for?

It is used in audio power stages, switching regulators, motor drivers, and industrial power circuits.

What is the 2N6100 pinout?

The 2N6100 pinout is Base-Collector-Emitter (B-C-E) in TO-220 format.

Is 2N6100 NPN or PNP?

The 2N6100 is an NPN power transistor.

What is the maximum current rating?

It supports 10 A continuous collector current.

What is the complementary PNP transistor?

The matching PNP device is the 2N6105.

Conclusion

The 2N6100 NPN transistor is a rugged and versatile high-power device offering 80V capability, 10A current handling, and 75W dissipation. With its reliable TO-220 package, fast switching response, and stable gain, it is ideal for circuits requiring strong and dependable performance.

By understanding the 2N6100 pinout, datasheet specifications, and equivalent substitutes, designers can integrate it into efficient and durable power amplifiers, motor drivers, SMPS units, and industrial control systems.

Datasheet & Pinout of 2N6100 NPN Transistor

Click the following Button to download the datasheet of 2N6100 Transistor :
