MJE15033 PNP Power Transistor Datasheet

Introduction

The MJE15033 is a high-voltage, high-speed PNP power transistor designed for use in audio amplifier driver stages, power switching circuits, and linear applications. Built using epitaxial-base technology, it provides excellent gain stability, wide frequency response, and efficient thermal performance. This transistor is widely used in professional-grade audio amplifier systems due to its ability to handle high current and high voltage with low distortion.

Packaged in the TO-220 case, the MJE15033 offers reliable thermal dissipation and robust mechanical design. With a collector-emitter voltage of –250V, a collector current rating of –8A, and a maximum power dissipation of 50W, it is an ideal choice for medium to high-power circuits. Its characteristics make it suitable for linear amplifier outputs, switching regulators, and motor drivers, especially in designs requiring complementary push-pull configurations.

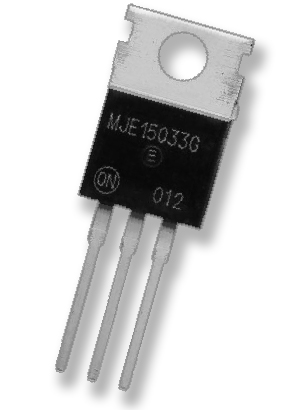

MJE15033 PNP Power Transistor

When paired with its complementary MJE15032 (NPN), the MJE15033 transistor becomes an essential building block in hi-fi audio amplifiers and professional sound systems, ensuring smooth signal amplification and excellent performance across a wide frequency range. Its fast switching capability and high transition frequency also make it a suitable option for inverter and high-frequency power supply designs.

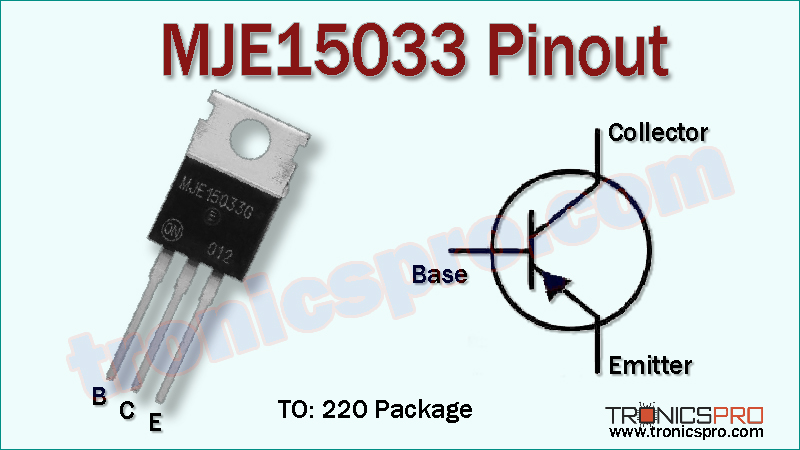

MJE15033 Pinout

Pin Configuration

Key Features

• High voltage capacity up to –250V.
• Collector current handling up to –8A.
• Fast switching speed suitable for high-frequency circuits.
• Reliable TO-220 package with good heat dissipation.
• Designed for use in audio amplifier driver stages.
• Complementary with MJE15032 (NPN).

Characteristics

• Transistor Type: PNP
• Collector-Emitter Voltage (Vce): –250V
• Collector-Base Voltage (Vcb): –250V
• Emitter-Base Voltage (Veb): –5V
• Collector Current (Ic): –8A
• Power Dissipation (Pd): 50W
• DC Current Gain (hFE): 25 – 150
• Transition Frequency (ft): 30 MHz (typical)
• Package Type: TO-220

More Circuit Layouts

Key Applications of MJE15033 PNP Power Transistor

• Audio amplifier driver and output stages.
• High-fidelity and professional sound systems.
• Switching regulator circuits.
• Motor driver and inverter applications.
• High-frequency switching power supplies.

NPN Complimentary Transistor

MJE15032 (NPN Power Transistor).

Equivalent of MJE15033 PNP Power Transistor

• MJE15031 (lower voltage version).
• 2SA1943 (popular PNP audio transistor).
• TIP42C (lower voltage, general-purpose PNP).
• NJW0281 (high-power PNP transistor for audio).

(Pin configuration of some transistors mentioned above may different from MJE15033).

Datasheet of MJE15033 PNP Power Transistor

Click the following Button to download the datasheet of MJE15033 PNP Transistor :
