The TIP106 is a high-current PNP Darlington power transistor designed for demanding power control applications. This article explains the TIP106 pinout, features, specifications, working principle, applications, and suitable equivalents in a clear, structured format.
Introduction
The TIP106 is a PNP Darlington transistor intended for medium- and high-power switching and amplification tasks. Thanks to its Darlington configuration, it offers very high current gain, allowing small base currents to control large collector currents, making it ideal for power driver circuits.

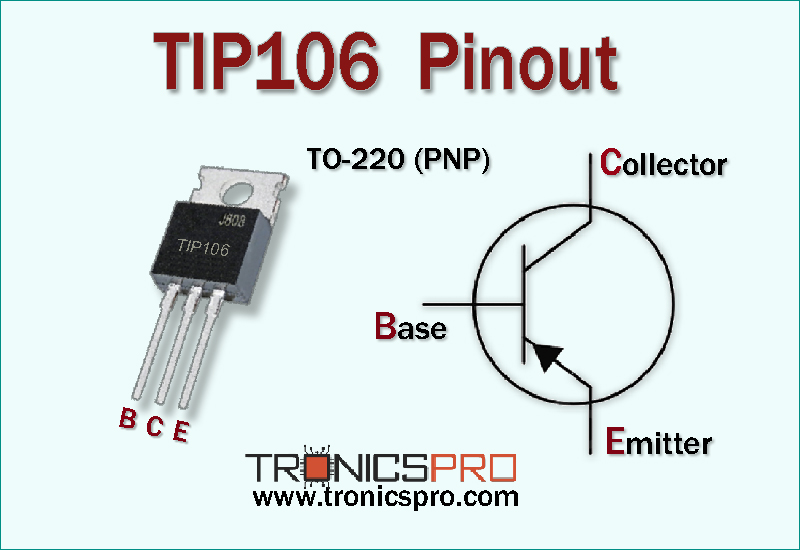

Pin Configuration / Pinout of TIP106 Transistor
Understanding the TIP106 Pinout Configuration

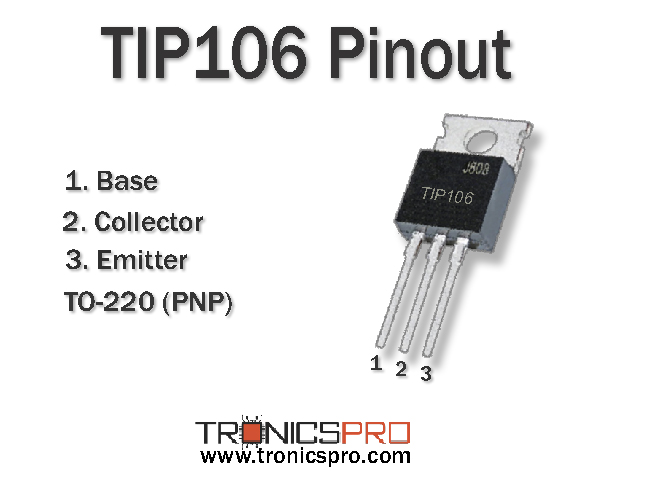

The TIP106 comes in a TO-220 package with a B-C-E pin layout:
| Pin# | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
Correct identification of the TIP106 pinout is critical for safe and reliable circuit operation.
Note: DATASHEET DOWNLOAD button is provided end of this article.
TIP106 Key Features
- PNP Darlington transistor design
- Very high current gain
- Suitable for high-current power switching
- Handles demanding load conditions
- Robust TO-220 package for heat dissipation
- Easy interface with low-power control circuits
TIP106 Specifications / Characteristics
- Collector-Emitter Voltage (VCE): 80V
- Collector-Base Voltage (VCB): 80V
- Emitter-Base Voltage (VEB): 5V
- Collector Current (IC): 8A
- Power Dissipation (PD): 80W
- Junction Temperature (Tj): 150 °C
- Storage Temperature (Tstg): −65 °C to +150 °C
- Package Type: TO-220
- Pin Configuration: Base – Collector – Emitter
Key Applications of TIP106 Transistor
- High-power switching circuits
- Relay and solenoid drivers
- DC motor and actuator control
- Power supply control stages
- Industrial automation systems
TIP106 Equivalent / Alternatives
(Verify pin compatibility before using substitutions)
Equivalent MOSFETs: TIP105, TIP107
Alternative MOSFETs: TIP125, BD680, MJ2955 (with suitable design changes)
More Circuit Layouts
Working Principle of TIP106
The TIP106 operates using a Darlington pair of PNP transistors internally connected to multiply current gain. When a suitable negative bias is applied to the base, a small input current controls a much larger current flowing through the collector-emitter path, enabling efficient power control.
Frequently Asked Questions (FAQ)
Q1: Is TIP106 a MOSFET?
No, TIP106 is a PNP Darlington bipolar transistor, not a MOSFET.
Q2: Does TIP106 require a heat sink?
Yes, a heat sink is strongly recommended for high-current or continuous operation.
Q3: Can TIP106 be used in complementary designs?
Yes, it is often paired with NPN Darlington transistors in push-pull stages.
Q4: Is TIP106 suitable for switching applications?
Yes, it is widely used for power switching and driver circuits.
Conclusion
The TIP106 PNP Darlington transistor is a powerful and versatile component for high-current control applications. With its high gain, solid thermal capability, and simple TO-220 pinout, it remains a dependable choice for power electronics and industrial designs.
Datasheet of TIP106 Transistor
Click the following Button below to download the datasheet of TIP106 :
