Introduction
The TDA2003 is a power amplifier IC (integrated circuit) that operates with a single supply voltage. This single-supply amplifier is widely used for audio applications such as car audio systems, portable speakers, and home theatre systems. It can deliver up to 10 watts of power to an 8-ohm speaker, making it perfect for low to medium power applications.
The TDA2003 power amplifier is a cost-effective solution for those looking to build an audio system without having to worry about complex circuitry. This amplifier is easy to use, requires few external components, and is capable of producing high-quality audio output. In this article, we will discuss the TDA2003 power amplifier’s features, working principles, advantages, and limitations.
Features of TDA2003 Amplifier Single Supply:
The TDA2003 power amplifier has several key features that make it an ideal choice for audio applications. It is designed to operate with a single supply voltage between 8V and 18V, making it simple to integrate into a variety of audio systems. Other features of the TDA2003 power amplifier include:
- High output power: The TDA2003 power amplifier is capable of delivering up to 10 watts of power to an 8-ohm speaker, making it suitable for low to medium power applications.
- Low distortion: The TDA2003 power amplifier has a low distortion rate, making it capable of producing high-quality audio output.
- Internal thermal and overload protection: The TDA2003 power amplifier includes internal circuit protection from thermal and overload conditions. This feature helps prevent damage to the amplifier during operation.
- Easy to configure: The TDA2003 power amplifier requires only a few external components to operate, making it simple to configure in various audio systems.
Circuit Diagram
of TDA2003 Amplifier Single Supply

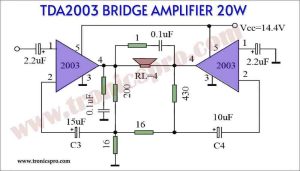

More Circuit Layouts








Working principles:
of TDA2003 Amplifier Single Supply
The TDA2003 power amplifier operates by amplifying the input signal and driving a load, such as a speaker or headphones. The input signal is first passed through a pre-amplifier stage, which amplifies the signal to a level that can be handled by the TDA2003 power amplifier. The TDA2003 power amplifier then amplifies the signal further and delivers it to the load connected to its output pins.
The TDA2003 power amplifier has two inputs: one for the audio signal and the other for the ground. The input signal is an AC voltage, which is coupled to the base of an NPN transistor. The transistor amplifies the signal and drives a second NPN transistor in push-pull mode. The push-pull configuration amplifies the signal further and provides a higher power output.
Advantages of TDA2003 Amplifier Single Supply:
The TDA2003 power amplifier has several advantages that make it a popular choice for audio applications. Some of these advantages are:
- Simple to use: The TDA2003 power amplifier is simple to use, requiring only a few external components to operate. This makes it easy to integrate into audio systems, especially for those who have limited knowledge of electronics.
- Cost-effective: The TDA2003 power amplifier is a cost-effective solution for those looking to build an audio system without having to spend a lot of money on complex circuitry.
- High-quality audio output: The TDA2003 power amplifier produces high-quality audio output, making it an ideal choice for audio systems.
Limitations of TDA2003 Amplifier Single Supply:
Despite its numerous advantages, the TDA2003 power amplifier also has some limitations that should be considered when selecting it for an audio application. These limitations include:
- Low power output: The TDA2003 power amplifier has a low power output of up to 10 watts, limiting its use for higher power applications.
- Limited frequency response: The TDA2003 power amplifier has a limited frequency response, making it unsuitable for applications that require a wider frequency range.
- Requires heat sink: The TDA2003 power amplifier generates a significant amount of heat during operation and requires a heat sink to dissipate this heat. This can add complexity and cost to the design.
Conclusion
of TDA2003 Amplifier Single Supply
The TDA2003 power amplifier is a popular choice for low-power audio applications due to its simplicity, cost-effectiveness, and high-quality audio output. It is an ideal solution for those looking to build an audio system without having to worry about complex circuitry. The TDA2003 power amplifier’s simplicity allows it to be easily integrated into various audio systems, while its high-quality output ensures clear and accurate sound reproduction. However, the TDA2003 power amplifier does have its limitations, including its low power output, limited frequency response, and the need for a heat sink. Despite these limitations, the TDA2003 power amplifier remains a versatile and cost-effective solution for low-power audio applications.
