MJE15028 Pinout Equivalent Application Datasheet

The MJE15028 pinout defines the pin configuration and electrical terminals of this high-voltage NPN power transistor housed in a TO-220 package. It is a fast-switching, high-current device designed for audio amplifier stages, power switching circuits, and motor control applications. With its robust structure and impressive performance, the MJE15028 ensures stable operation under high voltage and current conditions, making it ideal for professional amplifier and industrial electronic designs.

Introduction to MJE15028 NPN Transistor

The MJE15028 transistor is an NPN silicon power transistor specifically designed for high-speed switching and linear amplifier stages. It operates at a collector-emitter voltage of 120V, a collector-base voltage of 120V, and can deliver up to 8A collector current with a power dissipation of 20W when properly heat-sinked.

This transistor is popular in Class AB audio output stages, servo amplifiers, and voltage regulators, where precision, speed, and efficiency are required. It is known for its high gain stability, low saturation voltage, and complementary pairing with the MJE15029 PNP transistor for push-pull amplifier configurations.

Datasheet Download Button is provided end of this article.

MJE15028 NPN Transistor

Pinout of MJE15028

Understanding the MJE15028 Pinout Configuration

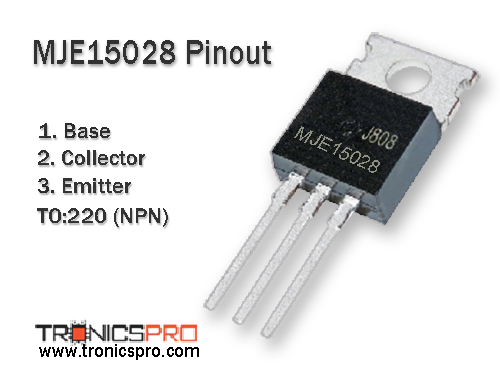

The MJE15028 pinout follows the standard Base-Collector-Emitter (B-C-E) sequence when viewed from the front (flat side facing you and leads pointing downward). This TO-220 package offers good thermal performance and ease of mounting on heatsinks, ensuring excellent heat transfer and compact board design.

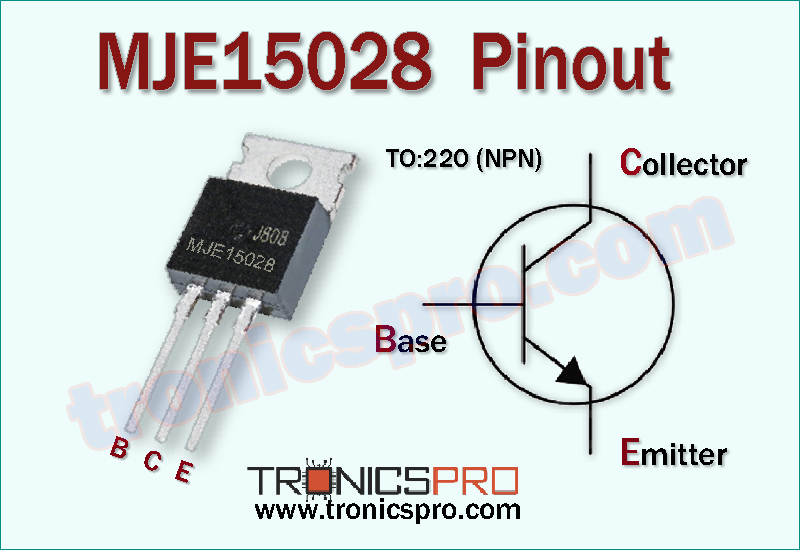

Pin Configuration of MJE15028 Pinout

Key Features of MJE15028 Transistor

• High voltage and current handling capability
• Fast switching performance for efficient operation
• High DC current gain with linear response
• TO-220 package for compact and durable design
• Suitable for high-fidelity audio stages and power circuits
• Stable thermal and electrical characteristics

MJE15028 Transistor Datasheet and Specifications

• Collector-Emitter Voltage (Vce): 120V
• Collector-Base Voltage (Vcb): 120V
• Emitter-Base Voltage (Veb): 5V
• Collector Current (Ic): 8A
• Power Dissipation (Pc): 20W
• DC Current Gain (hFE): 50 to 160
• Transition Frequency (fT): 30 MHz (typical)
• Package Type: TO-220
• Pin Configuration: Base-Collector-Emitter
• Complementary Pair: MJE15029 (PNP)

Working Principle of MJE15028 NPN Transistor

The MJE15028 operates as a current-controlled device, where a small base current controls a much larger collector current. In amplifier applications, it amplifies input signals with excellent linearity, while in switching applications, it quickly transitions between on and off states with minimal losses.

Thanks to its high transition frequency (fT) and stable gain, the MJE15028 performs exceptionally well in audio amplifier output stages, high-speed switching regulators, and motor driver circuits, ensuring clean and distortion-free output performance.

More Circuit Layouts

Typical Applications of MJE15028

• Audio power amplifier output stages
• High-speed switching regulators
• DC motor control circuits
• Power inverter and converter systems
• Voltage and current regulator modules
• High-frequency driver stages

PNP Complementary Transistor

The complementary transistor for the MJE15028 is the MJE15029 (PNP), which features the same voltage, current, and power ratings but opposite polarity. Together, they form an excellent push-pull configuration in Class AB amplifiers, ensuring smooth and symmetrical waveform reproduction for high-fidelity audio.

Equivalent Transistors and Alternatives

• MJE15030 (Higher voltage version)
• MJE15031 (PNP version of MJE15030)
• 2SC5200 (audio amplifier replacement, TO-264 package)
• TIP41C (lower voltage equivalent, economical option)
• BD243C (medium power equivalent for general circuits)

Each equivalent may differ in frequency, gain, or package type, so circuit design considerations should be reviewed before substitution.

Comparison Summary: MJE15028 vs MJE15029

The MJE15028 (NPN) and MJE15029 (PNP) are complementary power transistors designed to work together in push-pull amplifier designs. Both share identical voltage (120V), current (8A), and power (20W) ratings.

In operation, the MJE15028 handles the positive half of the waveform, while MJE15029 manages the negative half, producing smooth output transitions and reducing crossover distortion. Their matched characteristics ensure excellent linearity, efficiency, and performance in high-quality audio amplifiers and power regulation systems.

Frequently Asked Questions (FAQ)

What is the MJE15028 transistor used for?

It is commonly used in audio amplifier output stages, power regulators, and switching power supplies where fast response and stable gain are needed.

What type of transistor is MJE15028?

The MJE15028 is an NPN silicon power transistor with high voltage, current, and switching performance.

What is the MJE15028 pinout configuration?

The pinout follows the sequence Base-Collector-Emitter (B-C-E) when viewed from the front (flat side facing you).

What is the complementary transistor for MJE15028?

The MJE15029 (PNP) is its complementary transistor, used together for push-pull amplification.

Can MJE15028 be replaced with TIP41C?

Yes, but TIP41C has lower voltage and frequency ratings, making it suitable for medium-power circuits rather than high-performance audio systems.

Conclusion

The MJE15028 NPN transistor is a high-performance, reliable choice for audio amplifiers, power supplies, and industrial control systems. With its 120V rating, 8A current capability, and robust TO-220 design, it ensures efficient power delivery and stable operation. When paired with MJE15029, it forms a perfect complementary set for push-pull Class AB amplifiers, offering clean sound and minimal distortion.

For engineers, repair professionals, and DIY enthusiasts, the MJE15028 remains a trusted transistor for both performance and durability.

Datasheet of MJE15028 NPN Transistor

Click the following Button to download the datasheet of MJE15028 Transistor :
