The BC178 is a popular low-noise PNP small-signal transistor designed for audio, analog, and general-purpose amplification tasks. In this complete guide, we explain the BC178 pinout, internal working, datasheet specifications, key features, applications, and compatible equivalent transistors so you can confidently use it in amplification, switching, and RF circuit designs.
Introduction
The BC178 is a general-purpose PNP bipolar junction transistor widely used for low-level amplification in audio and analog circuits. Its stable performance, low noise, and ability to handle low currents make it suitable for hobby, educational, and professional electronic applications. It belongs to the BC107–BC177–BC178 transistor family commonly used in European designs.
Pin Configuration / Pinout of BC178 Transistor
Understanding the BC178 Pinout Configuration

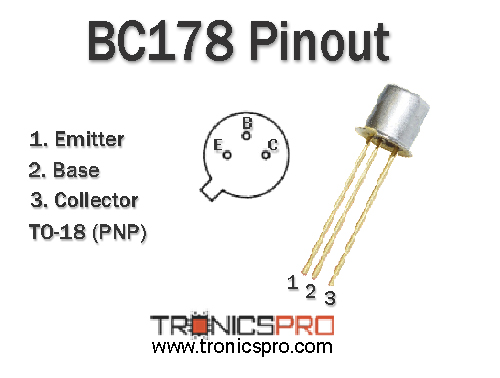

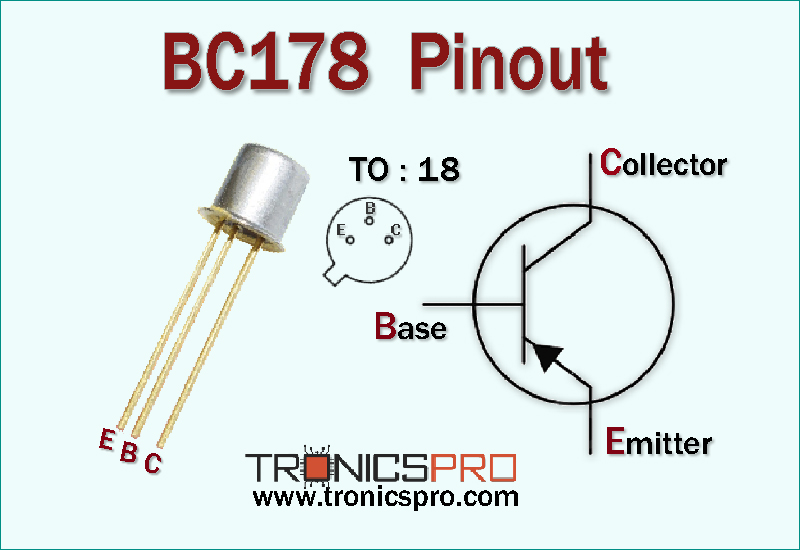

The BC178 comes in the TO-18 metal can package with three terminals: emitter, base, and collector.
| Pin# | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
Note: DATASHEET DOWNLOAD button is provided end of this article.
BC178 Key Features
- PNP bipolar transistor for small-signal applications
- Low-noise characteristics suitable for audio and analog circuits
- Good gain stability across temperature variations
- Capable of handling moderate switching and amplification tasks
- Suitable for high-frequency low-power signal stages
- Durable metal-can TO-18 package for better heat dissipation
- Reliable performance in low-voltage analog designs
BC178 Specifications/Characteristics
- Transistor type: PNP bipolar junction transistor
- Collector-emitter voltage (Vceo): –25V
- Collector-base voltage (Vcbo): –30V
- Emitter-base voltage (Vebo): –5V
- Continuous collector current (Ic): –100mA
- Maximum collector current (Icm): 200mA
- Total power dissipation (Ptot): 300mW
- Maximum junction temperature (Tj): 175°C
- Storage temperature range (Tstg): –55°C to +175°C
- DC current gain (hFE): 125 to 260
- Transition frequency (fT): 180MHz
- Package type: TO-18 metal can
Key Applications of BC178 Transistor
- Audio preamplifier stages
- Low-noise small-signal amplification
- Analog signal processing circuits
- Low-frequency RF stages
- Sensor signal conditioning
- Small-signal switching applications
- Hobby and educational electronics projects
BC178 Equivalent / Alternatives
(Verify pin compatibility before using substitutions)
Common equivalents and suitable replacements include:
More Circuit Layouts
Working Principle of BC178
The BC178 works as a PNP transistor where a small base current controls a larger current between the emitter and collector. When the base is driven slightly more positive than the emitter, it enters forward-active mode and amplifies the input signal. Its low noise and stable gain characteristics make it ideal for audio preamplifiers, low-frequency amplifiers, and sensitive analog circuits. The device also supports moderate switching functions.
Frequently Asked Questions (FAQ)
Q1: Is BC178 suitable for audio amplifier circuits?
Yes, its low-noise design makes it excellent for audio preamplifiers and analog stages.
Q2: Can I use BC557 instead of BC178?
Yes, BC557 is a widely used plastic-encapsulated replacement.
Q3: What package does BC178 use?
It comes in the TO-18 metal can package.
Q4: Can BC178 handle high frequencies?
Yes, with an fT of around 180MHz, it works well in RF and high-frequency small-signal circuits.
Q5: Is BC178 still widely available?
It is less common today but still obtainable through specialty electronic suppliers.
Conclusion
The BC178 is a reliable and versatile PNP transistor ideal for low-noise amplification, analog processing, and small-signal switching. With its stable gain, high frequency capability, and durable TO-18 packaging, it remains a solid choice for audio, RF, and general-purpose electronics. This guide covered the BC178 pinout, specifications, working principle, applications, and compatible alternatives to help you use it efficiently in your projects.
Datasheet of BC178 Transistor
Click the following Button below to download the datasheet of BC178 :
