2N6099 Pinout, Equivalent, Application, Datasheet

The 2N6099 NPN power transistor is a high-performance device widely used in switching circuits, motor drivers, and audio amplification stages. If you are searching for the 2N6099 pinout, specifications, and alternatives, this complete guide explains everything you need for correct usage and circuit design integration.

Introduction to 2N6099 NPN Transistor

The 2N6099 is a high-current NPN bipolar transistor built for demanding power applications. Designed in the popular TO-220 package, it operates efficiently at 70V collector-emitter voltage, 70V collector-base voltage, and supports a powerful 10A collector current.

With a strong 75W power dissipation capability, the 2N6099 NPN transistor is ideal for medium-to-high power switching, audio output stages, voltage regulators, and industrial power controls. It performs reliably under thermal stress and offers stable gain for both linear and switching operations.

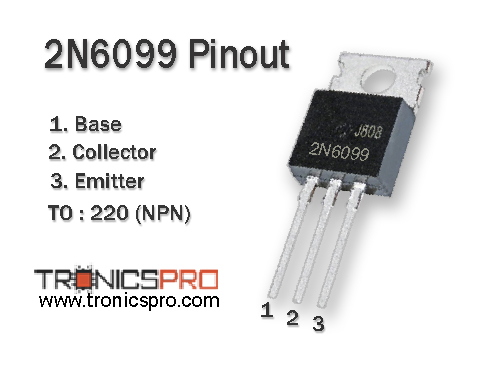

2N6099 NPN Transistor

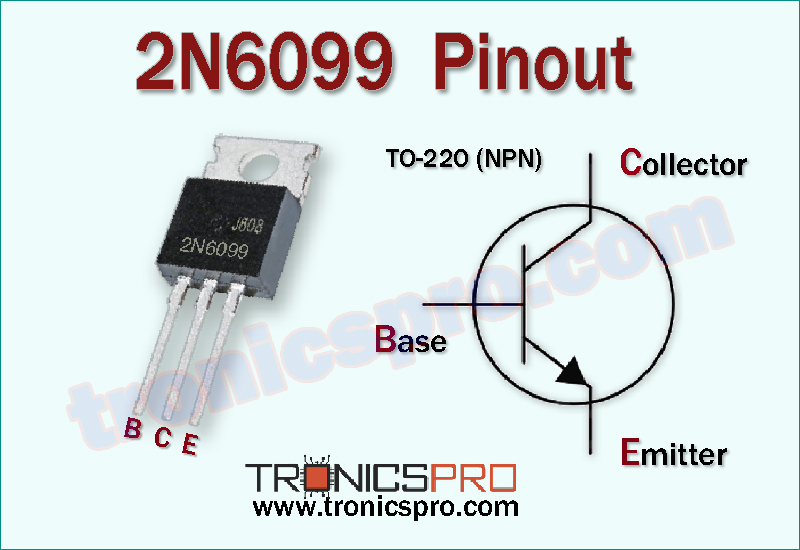

Pinout of 2N6099

Pin Configuration of 2N6099 Pinout

Understanding the 2N6099 Pinout Configuration

The 2N6099 pinout follows the widely used B-C-E (Base-Collector-Emitter) arrangement when viewed from the front of the TO-220 package with leads pointing downward. This pin sequence ensures easy integration into power amplifiers, motor drivers, and switching stages.

Key Features of 2N6099 Transistor

• High power-handling capability
• Stable DC current gain for various load conditions
• Suitable for linear and fast-switching operations
• Strong thermal stability and rugged design
• Ideal for power amplifiers and motor control
• Reliable TO-220 housing for heat dissipation

2N6099 Transistor Datasheet and Specifications

• Collector-Emitter Voltage (Vce): 70 V
• Collector-Base Voltage (Vcb): 70 V
• Emitter-Base Voltage (Veb): 5 V
• Collector Current (Ic): 10 A
• Power Dissipation (Ptot): 75 W
• DC Current Gain (hFE): 15–100 (typical range)
• Transition Frequency (fT): approx. 3 MHz
• Collector-Emitter Saturation Voltage: Low for efficient switching
• Package Type: TO-220
• Transistor Type: NPN

Working Principle of 2N6099 Transistor

• The 2N6098 operates by allowing current to flow from the collector to the emitter when a small bias current is applied at the base. Because it is an NPN BJT, the device turns ON when the base receives a positive voltage relative to the emitter.
• In switching circuits, it works efficiently in saturation and cutoff modes, providing fast transitions and stable performance. In linear circuits like audio amplifiers, it offers controlled and smooth current gain, making it ideal for driving medium-power loads. Its heavy-duty construction allows the transistor to handle 10 A with proper heat-sinking, ensuring long-term reliability.

More Circuit Layouts

Applications of 2N6099 Transistor

• Audio power output amplifiers
• Regulated AC/DC power supplies
• Motor and solenoid driver circuits
• Industrial switching modules
• Relay and lamp drivers
• High-current switching regulators
• Power inverters and control systems

Equivalent and Alternative Transistors

Suitable replacements include:

• 2N6098
• BD249C
• TIP3055
• MJE15030
• BD911
• 2N6284 (higher-rated alternative)

Always verify pinout, voltage, and power dissipation before substitution.

Frequently Asked Questions (FAQ)

What is the 2N6099 transistor used for?

It is primarily used in high-current switching, audio amplification, and industrial power control.

What is the pin configuration of 2N6099?

The 2N6099 pinout is Base-Collector-Emitter (B-C-E) in the TO-220 package.

Is 2N6099 NPN or PNP?

It is an NPN transistor.

What is the maximum current rating of 2N6099?

It supports 10 A collector current.

What is the complementary transistor of 2N6099?

The complementary PNP device is 2N6104.

Conclusion

The 2N6099 NPN transistor is a rugged power device optimized for both switching and linear applications. Its 70V rating, 10A current capability, and 75W dissipation make it suitable for audio amplifiers, motor control circuits, SMPS designs, and industrial automation.

By understanding the 2N6099 pinout, specifications, and equivalent options, designers can integrate this transistor into reliable and high-efficiency circuits, especially when paired with its complementary 2N6104 PNP transistor.

Datasheet & Pinout of 2N60989 NPN Transistor

Click the following Button to download the datasheet of 2N6099 Transistor :
