Introduction

In this video I will teach you How to Make Voltage Booster using 555 timers IC and some common components. Input voltage of this circuit can be 6-12Vdc and the output voltage would be double to input voltage. I have tried to make this video as easy as it could be with common components.

**How to Make Voltage Booster Thumbnail**

Circuit Diagram of How to Make Voltage Booster

This amplifier can be designed using a few basic components. The circuit diagram of this project is shown below.

**How to Make Voltage Booster Circuit Diagram**

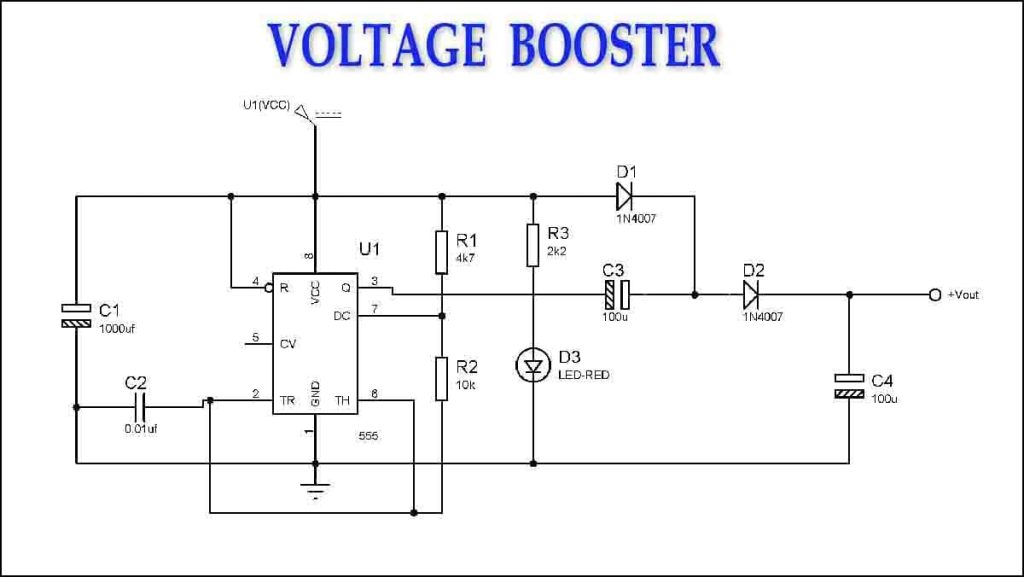

**How to Make Voltage Booster Schematic**

More Circuit Layouts

**120W Power Amplifier TDA7294 Circuit Diagram**

D718 B688 Class-AB Amplifier Circuit Diagram — **120W Power Amplifier TDA7294 Circuit Diagram**

**Variable Power Supply 0-30V_10A Circuit Diagram**

Stereo Amplifier TDA7297 Dual-Bridge Circuit Diagram — **Variable Power Supply 0-30V_10A Circuit Diagram**

Components List of How to Make Voltage Booster

Following is the list of components used in this project:

1X 555 TIMER IC
2X 1N4007 DIODES
2X 100Uf 50v CAPACITOR
1X 1000Uf 25V CAPACITOR
1X 0.01Uf (103) NONPOLAR CAPACITOR
1X 4.7 K OHM RESISTORS (1/4 WATT)
1X 10 K OHM RESISTORS (1/4 WATT)
1X 2.2K OHM RESISTORS
1X LED
2X2 PIN TERMINAL BLOCKS
VERO BOARD
SOME WIRES

Working Explanation of How to Make Voltage Booster

Voltage boosters are widely used in different electronic circuits to increase the voltage level. A volt booster can be built using different methods, but using a 555 timer IC is the easiest one. The 555 timer IC has become popular among electronic enthusiasts because of its versatility. It can be used in different applications, including voltage boosters. This article will guide you on how to make a voltage booster using a 555 timer IC.

Conclusion of How to Make Voltage Booster

Building a volt booster using 555 timer IC is an easy and cost-effective method. It requires only a few components and a little knowledge of electronics. This article has given you an idea of how to build a voltage booster circuit using a 555 timer IC. By following the given steps, you can easily build this circuit that can increase the voltage level of your desired load. So if you want to build a this booster circuit, go ahead and start building it now.
