How to Make Servo Motor Tester Using 555 IC

Introduction

In the world of electronics and robotics, servo motors are widely used for their accuracy and efficiency. Servo motors are commonly used in robots, RC cars, airplanes, and many other gadgets. A servo motor tester is an essential tool for testing the functionality of servo motors before installing them in a project. In this article, we will discuss the step-by-step process of how to make servo motor tester using a 555 timer IC.

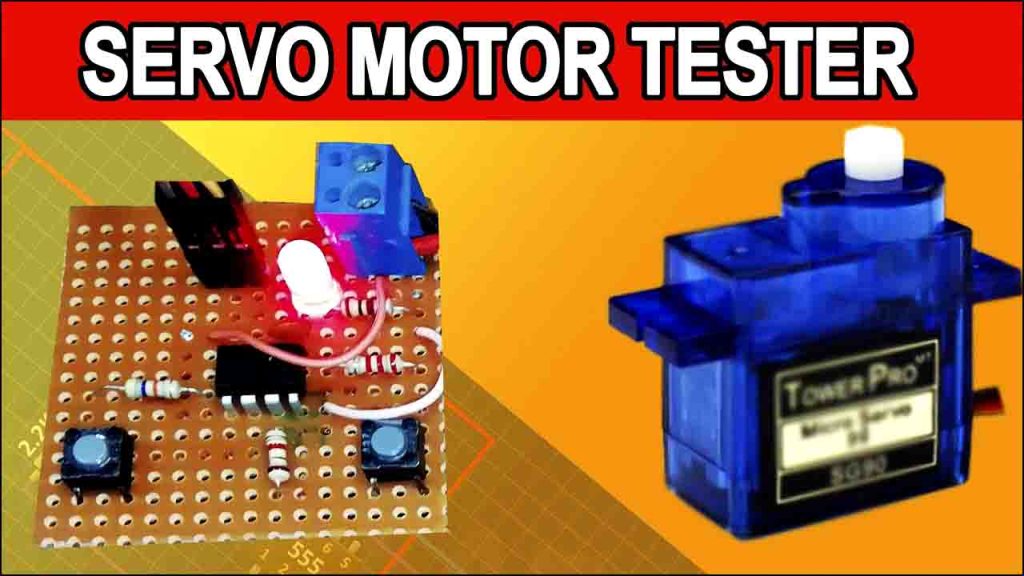

How to Make Servo Motor Tester Using 555 Timer IC — **Servo Motor Tester Using 555 Timer IC**

Circuit Diagram of of How to Make Servo Motor Tester

This project can be designed using a few basic components. The circuit diagram of this project is shown below.

How to Make Servo Motor Tester Circuit Diagram — **Servo Motor Tester Circuit Diagram**

How to Make Servo Motor Tester Schematic — **Servo Motor Tester Schematic**

More Circuit Layouts

**120W Power Amplifier TDA7294 Circuit Diagram**

D718 B688 Class-AB Amplifier Circuit Diagram — **120W Power Amplifier TDA7294 Circuit Diagram**

**Variable Power Supply 0-30V_10A Circuit Diagram**

Stereo Amplifier TDA7297 Dual-Bridge Circuit Diagram — **Variable Power Supply 0-30V_10A Circuit Diagram**

Components List of How to Make Servo Motor Tester

Following is the list of all components used in this project:

1X 555 TIMER IC
1X LED
2X PUSH BUTTONS
1X 0.1uF CAPACITOR
1X 100 OHM RESISTOR
1X 1K RESISTOR
1X 2.2K RESISTOR
1X 47K RESISTOR
1X 3 PIN MALE HEADER
1X 2 PIN TERMINAL BLOCK
PERF BOARD
JUMPER WIRES

Explanation of How to Make Servo Motor Tester

Gather all the material required to make the project. List of components is already provided above. Connection all parts according to the circuit diagram and layout given above.

Once you have built the circuit, you can test it by pressing the two push buttons. These two push buttons will move the motor clockwise and anticlockwise.

555 Timer IC

The 555 timer IC is a highly versatile and popular integrated circuit that is used extensively in electronic circuits for generating, timing and oscillator applications. It was introduced in the late 1970s and is available in various packaging options. The IC contains twenty-five transistors, two diodes, and fifteen resistors, which are configured to provide a wide range of functions such as astable, monostable, and bistable multivibrators. The IC can operate in a wide range of frequencies from a few Hertz to several hundred kHz and is widely used in electronic projects including timer circuits, tone generators, and pulse generators. It is easy to use, inexpensive, and readily available, making it an essential component in many electronic circuits.

Conclusion

In conclusion, a servo motor tester is an essential tool for testing the functionality of servo motors before integrating them into robotics and electronics projects. Building this tester is a great way to hone your skills in electronics and robotics, and with the help of a 555 IC, you can create a highly efficient and accurate tester. By following the steps in this article or in the video, you can easily create your servo motor tester and ensure that your servo motors work correctly.
