How to Make Dual-Tank Water Level Controller

Introduction

Water is one of the essential resources required for the smooth functioning of our daily lives. And, to ensure the proper management of water, the need for an efficient water level controller is of utmost importance. However, traditional water level controllers may not always be accurate, leading to either wastage or scarcity of water. With the advent of technology, there are several advanced water level controllers available in the market that effectively address this issue. One such technologically advanced water level controller is the Dual-Tank Water Level Controller using ATMEGA328 micro controller.

The Dual-Tank Water Level Controller using ATMEGA328 is an innovative water level control system that uses sensors and data analytics to ensure optimal utilization of water. It can be installed in homes, buildings, or almost any infrastructure that requires an efficient water level monitoring and control system. This article discusses the Dual-Tank Water Level Controller, its features, and benefits.

NOTE: All downloadable file links like Gerber file, Code file etc., are given in Components List below.

How to Make Dual-Tank Water Level Controller Thumbnail — **Dual-Tank Water Level Controller Thumbnail**

Circuit Diagram of Dual-Tank Water Level Controller

This controller can easily be built using a few basic components. The circuit diagram of this project is shown below.

How to Make Dual-Tank Water Level Controller Circuit Diagram — **Dual-Tank Water Level Controller Circuit Diagram**

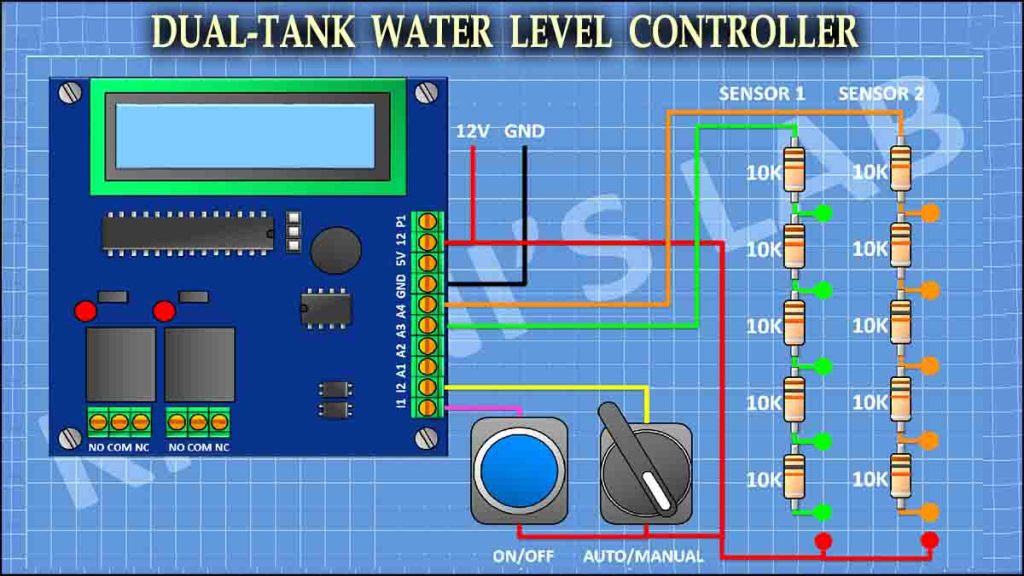

How to Make Dual-Tank Water Level Controller Circuit Diagram C2 — **Dual-Tank Water Level Controller Circuit Diagram C2**

How to Make Dual-Tank Water Level Controller Schematic — **Dual-Tank Water Level Controller Schematic**

More Circuit Layouts

**120W Power Amplifier TDA7294 Circuit Diagram**

D718 B688 Class-AB Amplifier Circuit Diagram — **120W Power Amplifier TDA7294 Circuit Diagram**

**Variable Power Supply 0-30V_10A Circuit Diagram**

Stereo Amplifier TDA7297 Dual-Bridge Circuit Diagram — **Variable Power Supply 0-30V_10A Circuit Diagram**

Components List of Dual-Tank Water Level Controller

Following is the list of all components used in this project:

1x 16X2 LCD
1x ATMEGA328 IC
1x MC34063 IC
2x PC817 Optocoupler
1x BD139 Transistors
2x BC547 Transistors
4x 1N4007 Diodes
4x 1N4148 Diodes
1x 1N5819 Diode
2x RED Led
1x 16MHz Crystal
3x Push Buttons
1x 1mH Inductor
2x 33p Capacitors
1x 1nF Capacitor
1x 1uF Capacitor
1x 100uF Capacitor
1x 470uF Capacitor
2x 10k Trim pots
18x 10k Resistors
6x 1k Resistors
1x 1R Resistors
1x 3k3 Resistors
1x 680R Resistor
1x 4k7 Resistors
2x 12V Relay
1x 12V Transformer
7x 2 Pin Terminal Blocks
2x 3 Pin Terminal Blocks
Male Header
jumper Wires

Gerber File
Schematic Download
Arduino Code
Code in Text
Hex File

Features of Dual-Tank Water Level Controller

Dual Tank System

The Dual-Tank Water Level Controller operates on a dual-tank system where the water is stored in two separate tanks. This allows users to separate the water for specific purposes and ensures that the water level is always maintained.

Sensor Based Technology

The Dual Tank Water Level Controller uses sensor-based technology to monitor the water level in the tanks. The sensors connect with the Arduino system, which then controls the water pumps accordingly.

LCD Display

The Dual Tank Water Level Controller comes with an LCD display that provides real-time updates on the water level of the tanks. It also displays any error messages, if any.

Automated Pump System

The Dual Tank Water Level Controller has an automated pump system that controls the water flow between the two tanks. This ensures that the water level is maintained, and there is no wastage of water.

Easy Installation

The Dual Tank Water Level Controller is easy to install and set up. Users can connect the sensors, pumps, and Arduino board without any technical knowledge.

Benefits of Dual-Tank Water Level Controller

Optimal Utilization of Water

The Dual Tank Water Level Controller ensures that the water is used optimally and effectively. It minimizes wastage of water and ensures that the water is used for specific purposes.

Cost-effective

The Dual Tank Water Level Controller is a cost-effective solution for water level monitoring and control. It ensures that the water is utilized to its maximum capacity, thereby reducing water bills.

Automated Water Management

With the sensor-based technology, automated pump system, and LCD display, the Dual Tank Water Level Controller offers automated water management. This makes it easy for users to monitor and control the water level in the tanks effortlessly.

Conclusion

The Dual Tank Water Level Controller is an advanced water level monitoring and control system that ensures optimal utilization of water. The sensor-based technology, automated pump system, and LCD display make it easy for users to monitor and control the water level without any hassle. The dual-tank system ensures that the water is utilized for specific purposes, making it a cost-effective solution. Therefore, the Dual Tank Water Level Controller is a great investment for homeowners, building owners, and anyone who requires an efficient water level monitoring and control system.
