The BD912 pinout defines the correct connection of this high-power PNP silicon transistor, essential for accurate circuit design and efficient performance. The BD912 is a complementary PNP transistor to the BD911 NPN type, specifically developed for audio power amplifiers, switching regulators, and high-current motor drivers. With a high collector current capacity of 15A, a collector-emitter voltage of 100V, and 90W of power dissipation, BD912 delivers exceptional reliability and linear performance in demanding electronic circuits.
Introduction to BD912 PNP Transistor
The BD912 transistor is a high-power PNP silicon transistor designed for medium- and high-power linear and switching applications. It operates efficiently in power amplifiers and regulated DC circuits due to its robust current and voltage capabilities. Featuring a TO-220 package, it offers excellent heat dissipation and durability under heavy electrical load.
Its PNP polarity makes it suitable for complementary operation with the BD911 NPN transistor, forming an ideal push-pull amplifier pair for Class-B and Class-AB audio output stages. The BD912’s performance and cost-effectiveness make it popular among professional engineers, students, and hobbyists alike.

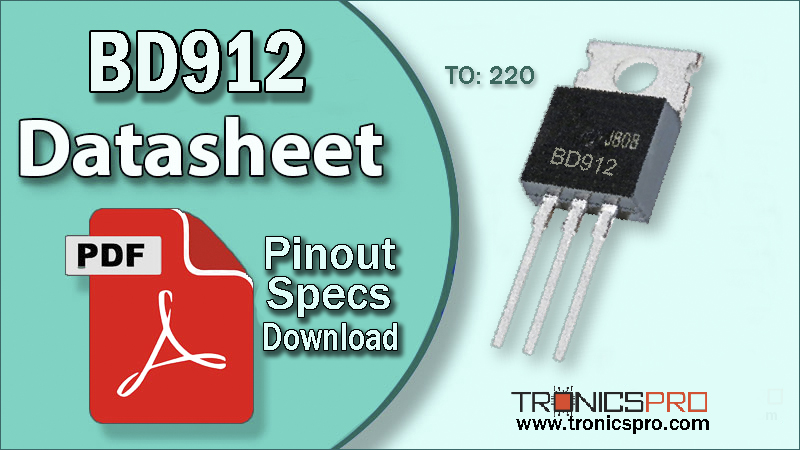

BD912 PNP Transistor
Pinout of BD912
Understanding the BD912 Pinout Configuration
To ensure correct installation, understanding the BD912 pinout is vital. Incorrect connections can cause transistor failure or circuit malfunction. The pin configuration for the BD912 in a TO-220 package is standard and consistent with its NPN complement, BD911.
Pin Configuration of BD912 Pinout
| Pin# | Pin Name | Pin Description |
|---|---|---|
| 1 | Base | Controls the transistor switching and amplification |
| 2 | Collector | Connected to the load/output terminal |
| 3 | Emitter | Connected to the ground or negative supply |
Key Features of BD912 Transistor
- PNP silicon power transistor
- High collector current up to 15A
- Collector-emitter voltage rating of 100V
- High power dissipation capability of 90W
- Suitable for both linear and switching applications
- Complementary to BD911 NPN transistor
- TO-220 package with excellent thermal stability
BD912 Transistor Datasheet and Specifications
- Collector-Emitter Voltage (Vce): 100 V
- Collector-Base Voltage (Vcb): 100 V
- Emitter-Base Voltage (Veb): 5 V
- Collector Current (Ic): 15 A
- Power Dissipation (Ptot): 90 W
- DC Current Gain (hFE): 40 – 250
- Transition Frequency (fT): 3 MHz
- Junction Temperature (Tj): 150 °C
- Package Type: TO-220
These specifications make the BD912 transistor a robust and versatile component suitable for various audio, power, and control circuits where high current and voltage levels are required.
Working Principle of BD912 Transistor
The BD912 PNP transistor operates by allowing current to flow from the emitter to the collector when a small base current is applied in the reverse direction. It works opposite to an NPN transistor. When the base is driven low (negative relative to the emitter), it allows a larger current to flow through the collector, amplifying or switching the connected load.
In push-pull amplifier circuits, the BD912 operates with its NPN complement BD911, where one handles the positive half of the signal, and the other manages the negative half, resulting in efficient, low-distortion output. This makes BD912 a preferred choice for audio amplifiers and DC motor controllers.
More Circuit Layouts
Typical Applications of BD912
- High-power audio amplifiers
- Voltage and current regulator circuits
- Switching regulators and converters
- Power supply circuits
- DC motor control circuits
- Complementary push-pull output stages
NPN Complementary Transistor
The BD911 NPN transistor serves as the complementary pair to the BD912 PNP transistor. Both share identical electrical characteristics and are commonly used together in audio amplifier and power output circuits. This complementary relationship ensures symmetrical signal amplification, leading to minimal crossover distortion and efficient power handling.
Equivalent Transistors and Alternatives
If the BD912 is unavailable, the following transistors can serve as suitable alternatives or equivalents, depending on the circuit requirements:
Ensure to verify each transistor’s voltage, current, and power parameters before replacement to maintain circuit reliability.
BD912 vs BD911 Comparison
The BD912 is a PNP transistor, while the BD911 is its NPN complementary pair. Both share equal ratings, 100V voltage, 15A current, and 90W power dissipation. In amplifier circuits, BD912 conducts during the negative cycle of the input waveform, while BD911 conducts during the positive cycle.
This complementary action allows both transistors to work together in Class-B or Class-AB amplifier configurations, ensuring efficient signal reproduction, reduced distortion, and stable performance under high load. Together, they form one of the most widely used pairs in audio and power amplifier circuits.
Frequently Asked Questions (FAQ)
What is the BD912 transistor used for?
The BD912 transistor is used in power amplifiers, switching circuits, and voltage regulators where high current and power handling are required.
What type of transistor is BD912?
It is a PNP silicon power transistor capable of handling 100V, 15A, and 90W power dissipation.
What is the BD912 pin configuration?
The BD912 pinout is: Pin 1 – Base, Pin 2 – Collector, Pin 3 – Emitter (TO-220 package).
What is the complementary transistor for BD912?
The NPN complementary transistor for BD912 is BD911.
Can I use TIP42C instead of BD912?
Yes, TIP42C can be used as an equivalent for BD912 in many circuits if the ratings match.
Conclusion
The BD912 transistor is a durable and high-performance PNP silicon transistor designed for power-intensive applications. With its 100V, 15A, and 90W capability, it excels in audio amplifier outputs, switching regulators, and DC motor control circuits.
When paired with its NPN complement BD911, the combination provides excellent push-pull amplification, delivering balanced signal output and superior sound quality. Reliable, affordable, and widely available — the BD912 transistor remains a top choice for both new designs and repair projects.
Datasheet & Pinout of BD912 NPN Transistor
Click the following Button to download the datasheet of BD912 Transistor :
