BD649 Pinout, Equivalent, Applications, Datasheet

The BD649 NPN Darlington transistor is a high-power device designed for audio amplifier output stages, DC motor control, and regulated power supplies. It delivers exceptionally high current gain and rugged thermal performance, making it a popular choice for both industrial and consumer electronic systems.
In this detailed guide, you’ll find everything you need to know about the BD649 pinout, datasheet specifications, applications, equivalents, and its complementary PNP pair BD650.

Introduction to BD649 NPN Transistor

The BD649 belongs to the Darlington transistor series developed for medium- to high-power amplification and switching. With a collector-emitter voltage of 100 V and a collector current of 8 A, it performs reliably in demanding electronic applications.

This transistor integrates two NPN transistors internally, forming a Darlington pair configuration that provides extremely high current gain while maintaining low input drive requirements.

Encased in a TO-220 package, the BD649 offers high thermal dissipation and mechanical stability. When combined with its complementary PNP transistor BD650, it becomes ideal for push-pull amplifier stages, power regulators, and motor driver circuits.

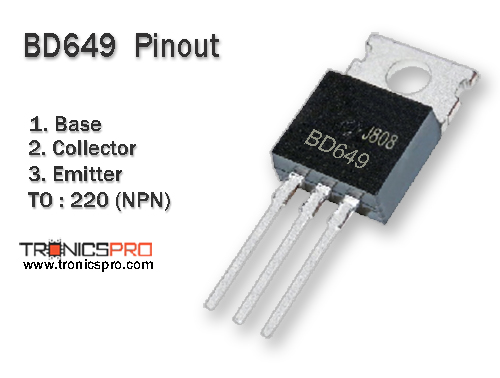

BD649 NPN Transistor

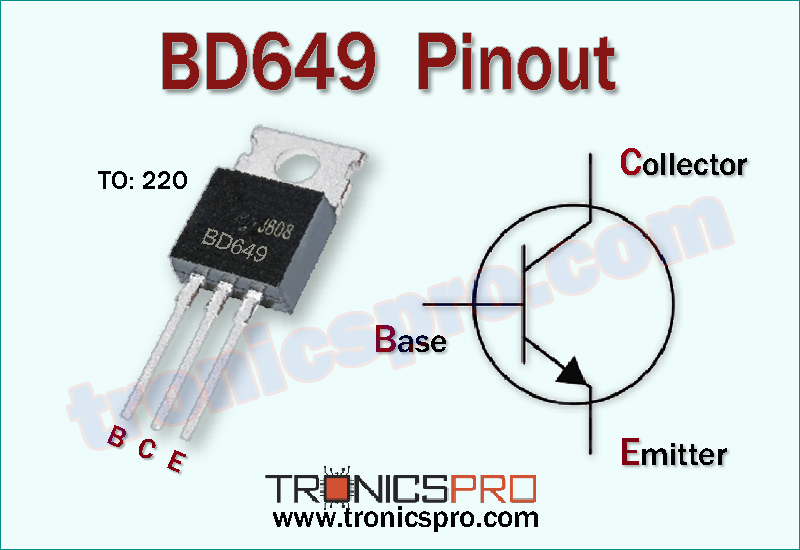

Pinout of BD649

Understanding the BD649 Pinout Configuration

The BD649 transistor pinout follows the standard layout of TO-220 power transistors. When facing the front of the device (with the label readable and pins pointing downward), the terminals are:

Pin Configuration of BD649 Pinout

The metal tab at the back of the package is internally connected to the collector. For safety and thermal reasons, use an insulator when mounting it to a shared heatsink.

Key Features of BD649 Transistor

• High DC current gain due to Darlington configuration
• Collector current rating up to 8 A continuous
• High collector-emitter voltage up to 100 V
• Excellent thermal and electrical stability
• Complementary to BD650 PNP transistor
• Low collector-emitter saturation voltage
• High power dissipation capacity (TO-220 case)
• Ideal for audio output, regulator, and switching circuits

BD649 Transistor Datasheet and Specifications

• Collector–Emitter Voltage (VCEO) = 100 V
• Collector–Base Voltage (VCBO) = 120 V
• Emitter–Base Voltage (VEBO) = 5 V
• Continuous Collector Current (IC) = 8 A
• Peak Collector Current (ICM) = 12 A
• Power Dissipation (PC) = 62.5 W (Tc = 25 °C)
• DC Current Gain (hFE) = 750 min at IC = 3 A
• Collector–Emitter Saturation Voltage (VCE(sat)) = 2.0 V max
• Base–Emitter Voltage (VBE(on)) = 2.5 V max
• Thermal Resistance (Junction-to-Case) = 2 °C/W
• Operating and Storage Temperature Range = –65 °C to +150 °C

These specifications make the BD649 transistor datasheet particularly attractive for engineers seeking a durable high-current amplifier or switch in power electronic systems.

Working Principle of BD649 NPN Transistor

The BD649 NPN Darlington transistor works by combining two transistors in one package, where the emitter of the first is connected to the base of the second. This setup creates a compound transistor with a very high current gain.

A small base current triggers a much larger collector current, enabling the BD649 to control high-power loads with minimal drive current. This makes it efficient in low-signal control stages that need to drive motors, relays, or amplifiers.

In push-pull amplifier configurations, the BD649 (NPN) handles the positive half-cycle of the waveform, while its PNP complement BD650 handles the negative half. This arrangement ensures symmetrical, low-distortion signal amplification with high power efficiency.

More Circuit Layouts

Typical Applications of BD649

• Audio power amplifiers and output drivers
• Relay and solenoid drivers
• DC and stepper motor control circuits
• Power supply regulators
• Battery charger control systems
• Inverter and UPS circuitry
• High-current switching applications

PNP Complementary Transistor

The BD650 is the PNP complementary transistor of the BD649.
When used together, these two transistors create a balanced push-pull configuration capable of delivering smooth and efficient amplification in audio systems or power controllers.

Both transistors share similar specifications. 8 A collector current, 100 V collector-emitter voltage, and 62.5 W power dissipation, ensuring optimal symmetry and minimal distortion across both waveform halves.

The BD650 is the PNP complementary transistor of the BD649.
When used together, these two transistors create a balanced push-pull configuration capable of delivering smooth and efficient amplification in audio systems or power controllers.

Both transistors share similar specifications. 8 A collector current, 100 V collector-emitter voltage, and 62.5 W power dissipation, ensuring optimal symmetry and minimal distortion across both waveform halves.

Equivalent Transistors and Alternatives

Several transistors can serve as BD649 equivalents or substitutes in similar voltage and current applications. Always check ratings before replacement.

• BD647 / BD648 — Similar Darlington types with matching ratings
• TIP122 / TIP127 — General-purpose Darlington pair alternatives
• MJ11015 / MJ11016 — Industrial high-current equivalents
• 2N6284 — Commonly used NPN Darlington with comparable gain

Each alternative offers slightly different performance and thermal profiles, so verify datasheet compatibility before implementation.

Comparison BD649 vs BD650 Complementary Transistors

This comparison shows that both transistors are mirror images of each other, perfectly suited for complementary amplifier or regulator designs.

Frequently Asked Questions (FAQ)

What is the BD649 transistor used for?

The BD649 is used in audio amplifier outputs, motor control, and switching circuits that require high current and power handling.

What type of transistor is BD649?

It’s an NPN Darlington power transistor capable of amplifying large currents with a very small base drive.

What is the BD649 pin configuration?

Pin 1 = Base, Pin 2 = Collector, Pin 3 = Emitter. The metal tab is also internally connected to the collector.

What is the complementary transistor for BD649?

The BD650 is the complementary PNP transistor for BD649.

Can I use TIP122 instead of BD649?

Yes, TIP122 can work as a BD649 replacement in many general-purpose circuits, though verify voltage and power ratings first.

Conclusion

The BD649 NPN Darlington transistor is an ideal solution for high-current amplification and switching operations. With its high gain, robust TO-220 package, and reliable performance, it’s suited for both hobbyist and industrial designs.

When paired with its complementary BD650 PNP transistor, it forms an excellent push-pull pair for audio output, power regulators, and motor drivers.

The BD649 transistor continues to be one of the most trusted Darlington NPN devices, valued for its efficiency, durability, and consistency across a wide range of power electronic applications.

Datasheet of BD649 NPN Transistor

Click the following Button to download the datasheet of BD649 Transistor :
