BD245 Pinout, Equivalent, Applications, Datasheet

The BD245 pinout is one of the most searched topics by engineers and electronics enthusiasts working with medium-power transistors. The BD245 is an NPN silicon power transistor in a TO-3PN (TO-218) package, designed for use in power amplification and high-current switching circuits. With its reliable current handling capability and robust construction, it is commonly used in audio amplifiers, voltage regulators, and motor driver circuits. The BD245 is the complementary counterpart of the BD246 PNP transistor, together forming a balanced pair for push-pull configurations.

Introduction to BD245 NPN Transistor

The BD245 transistor is built for power amplification and high-current switching applications where moderate voltage and strong thermal reliability are required. It belongs to a family of transistors widely used in both consumer and industrial electronics.

Its NPN polarity allows current to flow from the collector to the emitter when a positive voltage is applied to the base, making it suitable for various DC and AC control applications. Because of its excellent power dissipation and stable gain characteristics, the BD245 remains a popular choice in audio power stages, control units, and motor driver circuits.

Datasheet Download Button is provided end of this article.

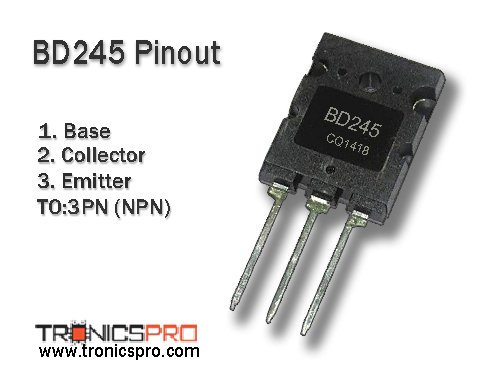

BD245 NPN Transistor

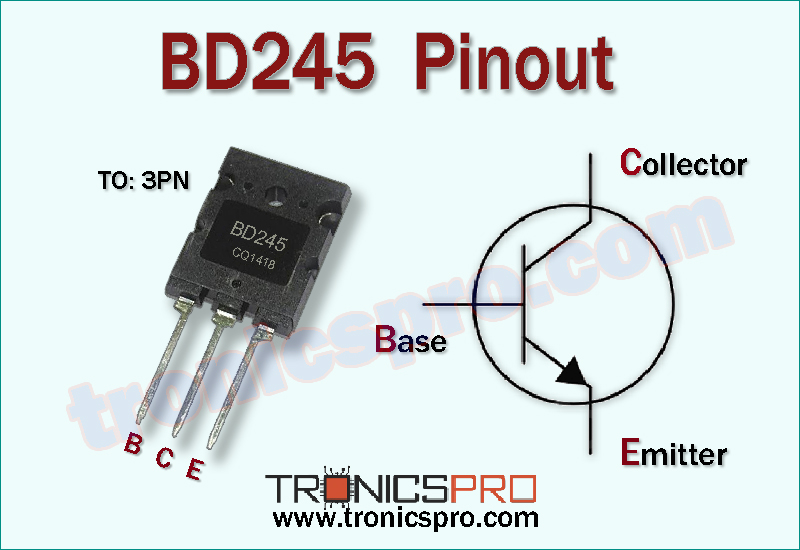

Pinout of BD245

Understanding the BD245 Pinout Configuration

Correctly identifying the BD245 pinout is essential for circuit assembly and design. When the transistor is viewed from the front (metal tab or marking side facing you and leads downward), the pin sequence is Base – Collector – Emitter (BCE). The large tab or case is internally connected to the Collector, allowing for efficient heat sinking and thermal dissipation during operation.

Pin Configuration of BD245 Pinout

Key Features of BD245 Transistor

• Medium-power NPN transistor for amplifier and switching applications
• Rugged construction suitable for industrial environments
• Reliable complementary match with BD246 PNP transistor
• Compatible with class-AB and class-B audio amplifier designs
• Excellent linearity and thermal stability
• Suitable for driver and output stages of power circuits
• Long-term performance consistency under varying thermal loads

BD245 Transistor Datasheet and Specifications

• Collector–Emitter Voltage (Vce): 45V
• Collector–Base Voltage (Vcb): 55V
• Emitter–Base Voltage (Veb): 5V
• Collector Current (Ic): 10A
• Power Dissipation (Pc): 80W
• DC Current Gain (hFE): 40 – 160 (typical range)
• Package Type: TO-3PN / TO-218
• Polarity: NPN
• Pin Configuration: Base – Collector – Emitter
• Junction Temperature (Tj): 150°C

Working Principle of BD245 NPN Transistor

The BD245 NPN transistor operates by allowing a controlled current to flow between the collector and emitter terminals when a small positive current is applied to the base. It functions as both an amplifier and a switch, depending on the circuit configuration.

In amplifier designs, BD245 is used to handle the positive half of the AC waveform, providing smooth amplification when paired with its complementary PNP device, BD246, which handles the negative half. In switching applications, it is employed to drive relays, motors, or high-power LEDs by controlling large currents with a small base input.

Its TO-3PN package offers a metal backing for efficient heat transfer, ensuring reliable performance in circuits that generate substantial power.

More Circuit Layouts

Typical Applications of BD245

• Audio amplifier output stages
• DC motor control and driver circuits
• Power regulators and voltage control units
• Relay and solenoid drivers
• Power inverters and UPS systems
• Complementary push-pull amplifiers
• Industrial power management systems

PNP Complementary Transistor

The BD246 is the PNP complementary transistor for the BD245. Both share identical voltage, current, and power characteristics but opposite conduction polarities. Together, they form a push-pull amplifier pair that ensures balanced signal amplification and improved efficiency.

Equivalent Transistors and Alternatives

• BD243 (NPN, similar ratings)
• TIP41C
• 2N6488
• MJE3055T
• MJ2955 (PNP complement to pair with equivalent circuits)

Comparison Summary: BD245 vs BD246

The BD245 vs BD246 comparison reveals a perfectly matched complementary pair designed for efficient amplification and power control. The BD245 is an NPN transistor, conducting when the base is positive relative to the emitter, while the BD246 is a PNP transistor, conducting when the base is negative relative to the emitter.

Both transistors share the same electrical ratings — 45V collector-emitter voltage, 55V collector-base voltage, 10A collector current, and 80W power dissipation — which allows them to operate together in complementary push-pull amplifier stages.

In amplifier circuits, the BD245 handles the positive waveform, while the BD246 handles the negative waveform, producing a full and symmetrical output with minimal crossover distortion. Their shared performance characteristics and thermal stability make them reliable for audio and industrial circuits where long-term performance is critical.

Frequently Asked Questions (FAQ)

What is the BD245 transistor used for?

The BD245 is used in audio amplifiers, motor drivers, and high-current switching circuits.

Is BD245 suitable for amplifier circuits?

Yes, it is widely used in class-B and class-AB push-pull audio amplifiers.

What is the BD245 pinout?

It follows a Base – Collector – Emitter (BCE) pin layout.

What is the complementary transistor for BD245?

The BD246 is the PNP complementary to BD245.

What package type is BD245 available in?

It comes in a TO-3PN (TO-218) package, known for excellent heat dissipation.

Conclusion

The BD245 transistor is a highly reliable NPN silicon power device suitable for audio power stages, voltage regulators, and motor drivers. Its robust 10A current handling and 80W dissipation capability make it ideal for demanding applications. When paired with its complementary BD246 PNP transistor, it delivers balanced amplification with superior efficiency and low distortion.

With stable performance, high gain, and strong thermal endurance, the BD245 remains one of the most trusted NPN power transistors used by designers in both industrial and hobby electronic projects.

Datasheet of BD245 NPN Transistor

Click the following Button to download the datasheet of BD245 Transistor :
