The TIP112 is an NPN Darlington power transistor designed for high current gain and reliable switching. This guide explains the TIP112 pinout, features, specifications, working principle, and applications in the same 9-heading format.
Introduction
The TIP112 is a medium-power NPN Darlington transistor commonly used in power driver and switching applications. Thanks to its Darlington configuration, it provides very high current gain, allowing low-current control signals to drive relatively higher load currents efficiently.

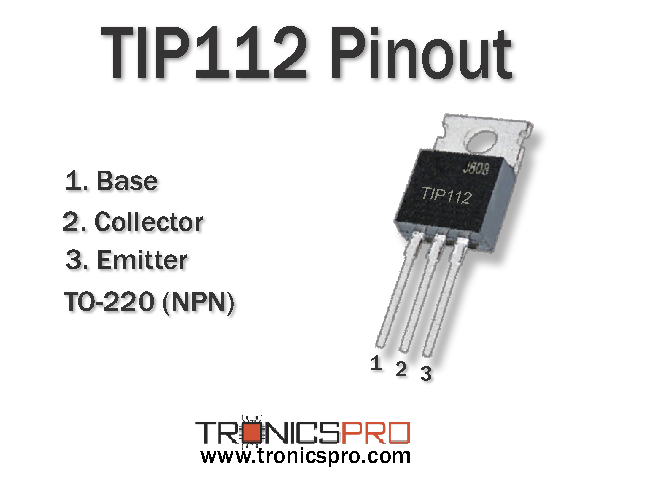

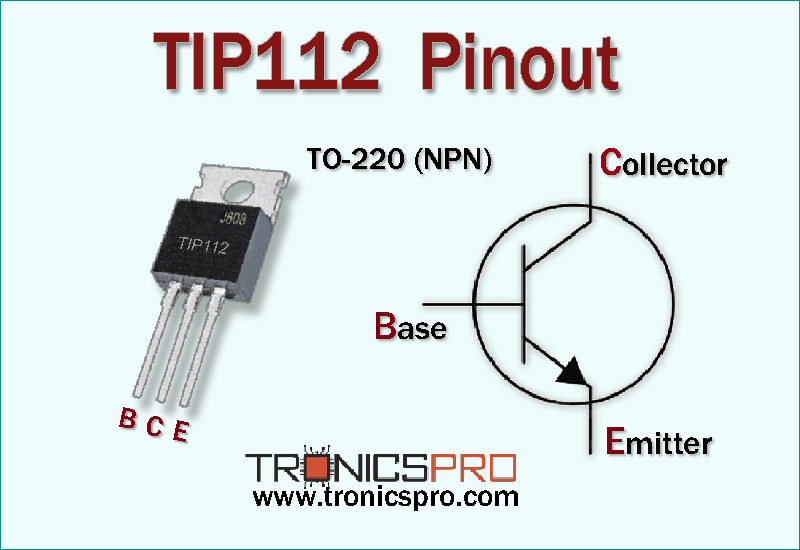

Pin Configuration / Pinout of TIP112 Transistor
Understanding the TIP112 Pinout Configuration
The TIP112 comes in a TO-220 package with a B-C-E pin configuration:
| Pin# | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
Correct TIP112 pinout connection is essential for safe and stable circuit operation.
Note: DATASHEET DOWNLOAD button is provided end of this article.
TIP112 Key Features
- NPN Darlington transistor design
- Very high DC current gain
- Low base drive requirement
- Suitable for power switching and amplification
- TO-220 package for easy mounting and cooling
- Stable performance under thermal stress
TIP112 Specifications / Characteristics
- Collector-Emitter Voltage (VCE): 100V
- Collector-Base Voltage (VCB): 100V
- Emitter-Base Voltage (VEB): 5V
- Collector Current (IC): 2A
- Power Dissipation (PD): 50W
- Junction Temperature (Tj): 150 °C
- Storage Temperature (Tstg): −65 °C to +150 °C
- Package Type: TO-220
- Pin Configuration: Base – Collector – Emitter
Key Applications of TIP112 Transistor
- Relay and solenoid drivers
- DC motor drivers
- Power amplifier driver stages
- Switching regulators
- Industrial control and automation circuits
TIP112 Equivalent / Alternatives
(Verify pin compatibility before using substitutions)
Equivalent MOSFETs: TIP110, TIP111
Alternative MOSFETs: BD679, TIP120 (higher current rating), MJE Darlington series
More Circuit Layouts
Working Principle of TIP112
The TIP112 operates using two internally connected NPN transistors in a Darlington pair. The first transistor amplifies the base current, and the second transistor further amplifies it, resulting in a very high overall current gain with minimal input current.
Frequently Asked Questions (FAQ)
Q1: Is TIP112 a MOSFET?
No, TIP112 is a bipolar junction transistor, not a MOSFET.
Q2: Does TIP112 need a heat sink?
Yes, a heat sink is recommended when operating near maximum power dissipation.
Q3: Can TIP112 be used with microcontrollers?
Yes, with a proper base resistor, it can be driven from logic-level outputs.
Q4: What is the main advantage of TIP112?
Its very high current gain makes it ideal for low-drive power applications.
Conclusion
The TIP112 NPN Darlington transistor is a reliable solution for power switching and driver circuits where high gain and moderate current handling are required. Its simple biasing, robust TO-220 package, and dependable performance make it suitable for both professional and DIY electronic designs.
Datasheet of TIP112 Transistor
Click the following Button below to download the datasheet of TIP112 :
