TDA7264 Pinout, Equivalent, Application, Datasheet

This article provides a complete guide to the TDA7264 stereo amplifier IC, covering its introduction, internal working, specifications, applications, and alternatives. The TDA7264 pinout is clearly explained in a dedicated section to help hobbyists and engineers design reliable audio amplifier circuits. Additionally, this guide includes answers to common FAQs and a concluding summary to ensure you understand every major aspect of the TDA7264.

Introduction

The TDA7264 is a high-performance 25W + 25W stereo Class-AB audio amplifier IC designed for home audio, multimedia speakers, stereo hi-fi systems, and DIY audio projects. It supports 8Ω speakers, operates with a wide supply range, and uses a reliable Class-AB architecture that ensures clean sound reproduction with low distortion.

Its built-in protection circuitry including short-circuit, thermal shutdown, and overload protection, makes it a reliable solution for demanding audio environments. With minimal external components and a compact design, the TDA7264 is widely preferred for high-quality stereo audio systems.

Pin Configuration / Pinout of TDA7264 Power Amplifier IC

Understanding the TDA7264 Pinout Configuration

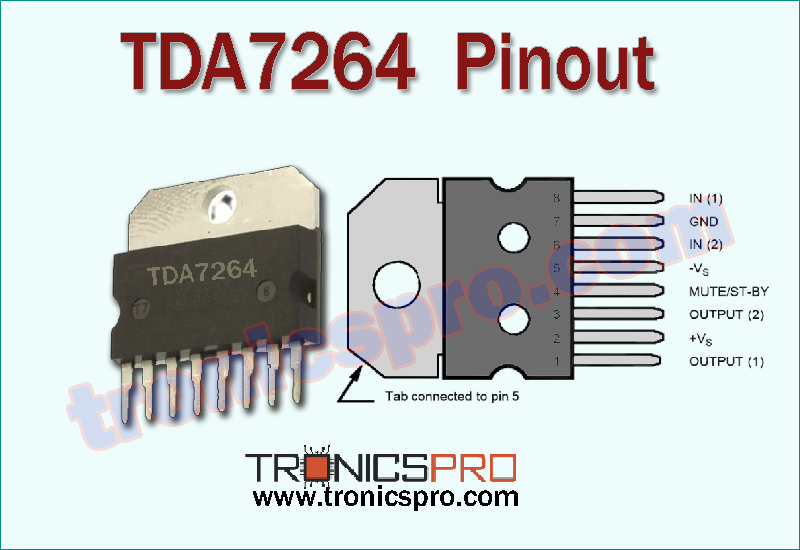

The TDA7264 pinout consists of essential pins for audio inputs, outputs, control functions, and power supply connections. Understanding each pin helps in designing accurate stereo amplifier circuits.

Note: DATASHEET DOWNLOAD button is provided end of this article.

TDA7264 Key Features

• Provides high-quality stereo audio output
• Supports smooth and low-distortion sound performance
• Stable operation under a wide supply range
• Designed with integrated protection circuitry
• Requires minimal external components
• Suitable for compact PCB designs
• Works efficiently with standard speaker loads
• Offers mute and standby control functionality

TDA7264 Specifications/Characteristics

• Stereo amplifier IC with Class-AB topology
• Output power: 25W + 25W with 8Ω load
• Absolute maximum supply voltage: up to 50V
• Recommended operating supply: +20V
• Load impedance: 8Ω
• Total power dissipation: 30W
• Operating temperature range: –40°C to +150°C
• Storage temperature: –40°C to +150°C
• Built-in thermal shutdown protection
• Built-in short-circuit and overload protection
• Low harmonic distortion
• High supply voltage rejection capability
• Minimal external component requirement

Key Applications of TDA7264 Power Amplifier IC

• Home stereo audio amplifiers
• Multimedia speaker systems
• DIY audio amplifier projects
• Mini hi-fi and bookshelf speakers
• Powered home audio units
• Educational and electronics hobby projects

TDA7264 Equivalent ICs / Alternatives

(Verify pin compatibility before using substitutions)

• TDA7265 – 25W × 2 Stereo Amplifier
• TDA7269A – 20W × 2 Stereo Amplifier
• TDA7296 – DMOS Audio Amplifier IC
• TDA7377 – Dual/Quad Power Amplifier
• LA4440 – Dual 20W Audio Amplifier

More Circuit Layouts

Working Principle of TDA7264

The TDA7264 works on a Class-AB amplifier architecture, providing a balance between sound quality and power efficiency. Audio signals fed into the input pins pass through internal biasing and low-noise preamplification circuits.

The bootstrap circuitry enhances output swing, allowing the IC to deliver stronger audio signals without distortion. Both stereo channels amplify the input signals independently, resulting in clean and powerful audio output for 8Ω speakers.

Built-in thermal shutdown and short-circuit protection constantly monitor the device’s operating conditions, preventing damage during abnormal loads or overheating.

Frequently Asked Questions (FAQ)

Q1: What is the power output of the TDA7264?

It delivers 25W + 25W stereo output with an 8Ω speaker load.

Q2: What is the maximum supply voltage?

The IC can handle a maximum of 50V (absolute max).

Q3: Does TDA7264 support protection features?

Yes, it includes thermal shutdown, short-circuit, and overload protection.

Q4: What type of amplifier is TDA7264?

It is a Class-AB stereo audio amplifier.

Q5: Can it drive 4Ω speakers?

It is optimized for 8Ω speakers, but operation with 4Ω may cause overheating or distortion unless carefully managed.

Q6: What package type is used?

It typically comes in a Multiwatt package.

Conclusion

The TDA7264 is a versatile and reliable 25+25W stereo audio amplifier IC ideal for home audio, multimedia systems, and DIY stereo amplifier designs. With a straightforward TDA7264 pinout, strong protection features, and stable Class-AB performance, it offers excellent sound quality and long-term durability. Whether you’re designing a new project or upgrading an existing audio setup, the TDA7264 provides a dependable solution for high-fidelity stereo amplification.
