MPSA92 Pinout, Equivalent Application Datasheet

The MPSA92 PNP transistor is a high-voltage, low-current semiconductor device commonly used in signal control and switching circuits. This article explains its electrical characteristics, typical applications, operating behavior, and detailed mpsa92 pinout information to support correct integration into electronic designs.

Introduction

The MPSA92 is a PNP bipolar junction transistor designed for high-voltage, low-current applications. It is widely used in audio stages, display driver circuits, and signal processing sections where voltage handling capability is more important than current capacity. The TO-92 package provides a compact footprint suitable for space-constrained PCB layouts.

Its stable operating behavior and predictable performance make the MPSA92 a practical choice for both commercial electronics and hobbyist projects.

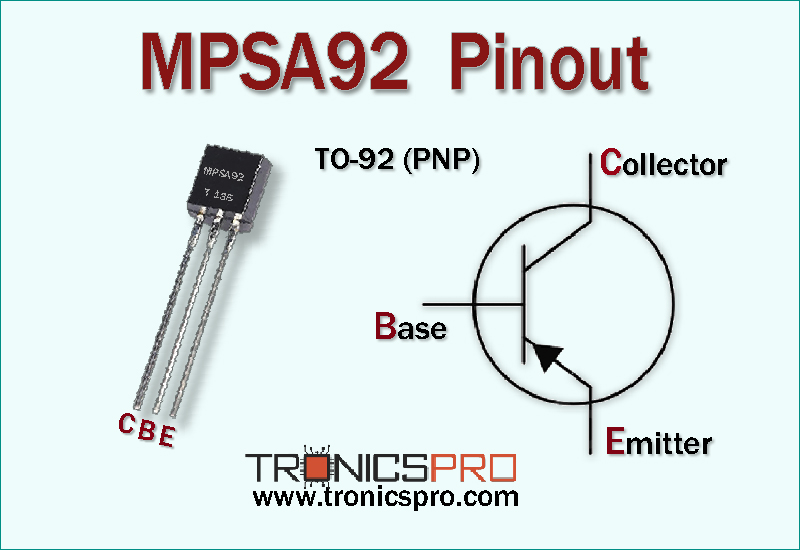

MPSA92 Pinout

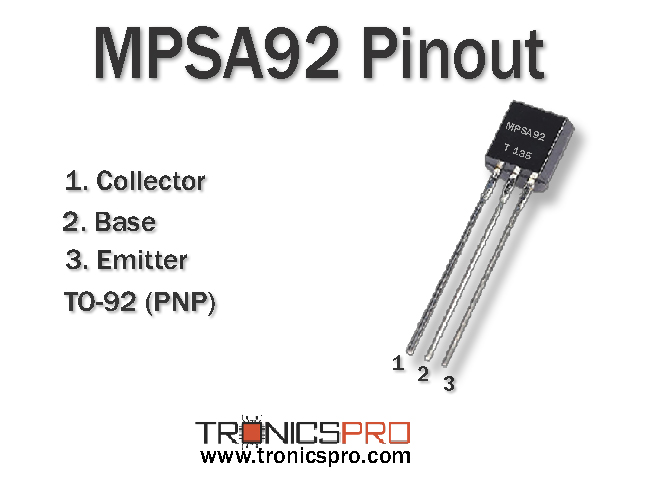

Understanding the MPSA92 Pinout Configuration

The MPSA92 pinout follows a Collector–Base–Emitter (C-B-E) arrangement when viewed from the flat side of the TO-92 package. Correct pin identification is important for proper circuit operation and to avoid component damage.

MPSA92 Key Features

• High voltage handling capability
• Stable switching and signal control performance
• Compact TO-92 package
• Suitable for low-current applications
• Easy integration into PCB layouts
• Reliable operation in continuous use

Characteristics / Specifications

• Transistor Type: PNP
• Package Type: TO-92
• Collector-Emitter Voltage (VCE): -300V
• Collector-Base Voltage (VCB): -300V
• Emitter-Base Voltage (VEB): 5V
• Continuous Collector Current (IC): 100mA
• Power Dissipation (PD): 625mW
• Maximum Junction Temperature (Tj): 150°C
• Storage Temperature Range (Tstg): -65°C to 150°C

More Circuit Layouts

Key Applications of MPSA92 PNP Transistor

• High-voltage signal control circuits
• Display driver stages
• Audio amplifier sections
• Switching in high-voltage, low-current circuits
• Signal processing equipment
• Consumer and industrial electronics

Equivalent of MPSA92 PNP Transistor

The following transistors can be considered as alternatives to the MPSA92 with suitable design adjustments:

• MPSA94
• 2N5401
• BF423
• BF472

Working Principle of MPSA92

The MPSA92 operates as a PNP bipolar junction transistor where current flow is controlled by the base relative to the emitter. When the base is at a lower potential than the emitter, the transistor conducts and allows current to flow from emitter to collector.

This operating behavior makes the MPSA92 suitable for controlling signals and switching in high-voltage, low-current applications.

Frequently Asked Questions (FAQ)

Q1: What package is used for the MPSA92 transistor?
The MPSA92 is available in a TO-92 package.

Q2: What is the MPSA92 pinout order?
The pin configuration is Collector, Base, and Emitter (C-B-E).

Q3: Can MPSA92 be used in high-voltage circuits?
Yes, it is specifically designed for high-voltage, low-current applications.

Q4: Is MPSA92 suitable for audio applications?
Yes, it is commonly used in audio signal and driver stages.

Conclusion

The MPSA92 PNP transistor is a reliable solution for high-voltage electronic applications that require stable signal control and compact design. With a clearly defined mpsa92 pinout, consistent operating characteristics, and broad application range, it is well suited for signal amplification and switching tasks in modern electronic circuits.

Datasheet of MPSA92 PNP Transistor

Click the following Button to download the datasheet of MPSA92 Transistor :
