The FQP22N30 or 22N30 is a high-performance N-Channel power MOSFET designed for medium- to high-voltage switching applications. This article explains the FQP22N30 pinout, features, specifications, working principle, applications, and equivalent devices in a clear, SEO-optimized format.
Introduction
The FQP22N30 is an enhancement-mode N-Channel MOSFET capable of handling high current and moderate-to-high voltage levels. With a 300V drain-source rating and strong power dissipation capability, it is well suited for SMPS, motor drives, and power control circuits. Its TO-220 package supports efficient heat sinking for reliable continuous operation.

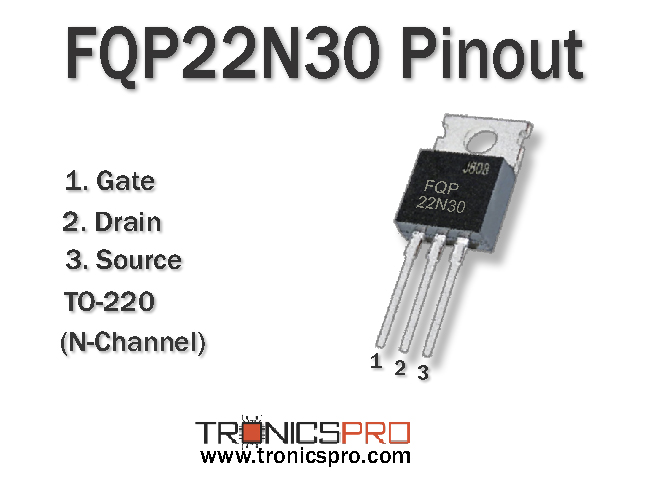

Pin Configuration / Pinout of FQP22N30 MOSFET

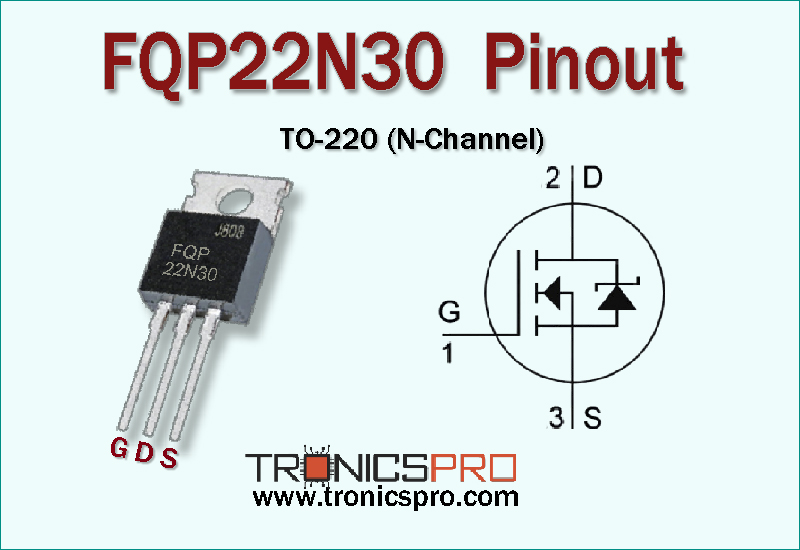

Understanding the FQP22N30 Pinout Configuration
The FQP22N30 comes in a TO-220 package with a standard G-D-S pin configuration:
| Pin# | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
Correct wiring of the FQP22N30 pinout ensures stable and safe circuit performance.
Note: DATASHEET DOWNLOAD button is provided end of this article.
FQP22N30 Key Features
- N-Channel enhancement-mode MOSFET
- High drain current handling capability
- Designed for high-power switching applications
- Fast switching characteristics
- Rugged and reliable structure
- TO-220 package for effective thermal dissipation
FQP22N30 Specifications / Characteristics
- Drain-Source Voltage (VDS): 300V
- Gate-Source Voltage (VGS): ±30V
- Continuous Drain Current (ID): 21A
- Pulsed Drain Current (IDM): 84A
- Power Dissipation (PD): 170W
- Junction Temperature (Tj): 150°C
- Storage Temperature Range (Tstg): −55°C to +150°C
- Package Type: TO-220
- Pin Configuration: Gate – Drain – Source
Key Applications of FQP22N30 MOSFET
- Switch-mode power supplies (SMPS)
- DC-DC converters
- Motor control and drives
- Power inverters
- Industrial switching circuits
FQP22N30 Equivalent / Alternatives
(Verify pin compatibility before using substitutions)
Equivalent MOSFETs: FQP20N30, FQP18N30
Alternative MOSFETs: IRFP250, STP22NM30, FDP22N30
More Circuit Layouts
Working Principle of FQP22N30
The FQP22N30 operates by applying a positive voltage to the gate relative to the source. When the gate voltage exceeds the threshold level, an internal conduction channel forms, allowing current to flow from drain to source. Removing the gate voltage turns the MOSFET off, making it suitable for efficient high-speed switching applications.
Frequently Asked Questions (FAQ)
Q1: What is the maximum voltage rating of FQP22N30?
The FQP22N30 supports a drain-source voltage of up to 300V.
Q2: What is the pin configuration of FQP22N30?
It uses a Gate-Drain-Source (G-D-S) pin layout in a TO-220 package.
Q3: Can FQP22N30 be used in SMPS circuits?
Yes, it is commonly used in SMPS and other high-power switching applications.
Q4: Is a heat sink required for FQP22N30?
A heat sink is recommended for high-current or high-power operation to maintain thermal stability.
Conclusion
The FQP22N30 N-Channel MOSFET is a powerful and reliable choice for high-current, medium-voltage power applications. Its strong electrical ratings, efficient switching behavior, and TO-220 packaging make it ideal for SMPS, motor drives, and industrial power control systems.
Datasheet of FQP22N30 MOSFET
Click the following Button below to download the datasheet of FQP22N30 :
