BD533 NPN Transistor Pinout Datasheet

Introduction

The BD533 is a high-power silicon NPN transistor designed for general-purpose power amplification and switching applications. It is commonly used in medium- to high-power audio amplifiers, DC motor drivers, voltage regulators, and other circuits that require reliable performance under heavy current loads. With a collector-emitter voltage of 60V and collector current up to 8A, the BD533 ensures robust and efficient operation in both industrial and consumer-grade electronic systems.

This transistor is housed in a TO-220 package, providing excellent thermal conductivity and power dissipation. Its structure allows stable operation even at elevated temperatures, making it suitable for circuits requiring durability and consistent performance. The BD533 transistor features high gain and good frequency response, ensuring low distortion in audio applications and smooth switching in control circuits.

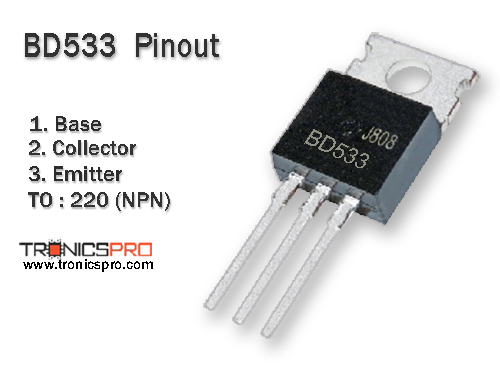

BD533 NPN Transistor

Engineers and hobbyists often prefer the BD533 for use in complementary pair configurations with its PNP counterpart BD534. Together, they deliver balanced output in push-pull amplifier stages and other symmetrical designs. The combination of high current capability, reliability, and wide availability makes BD533 a versatile component in various electronic power and signal applications.

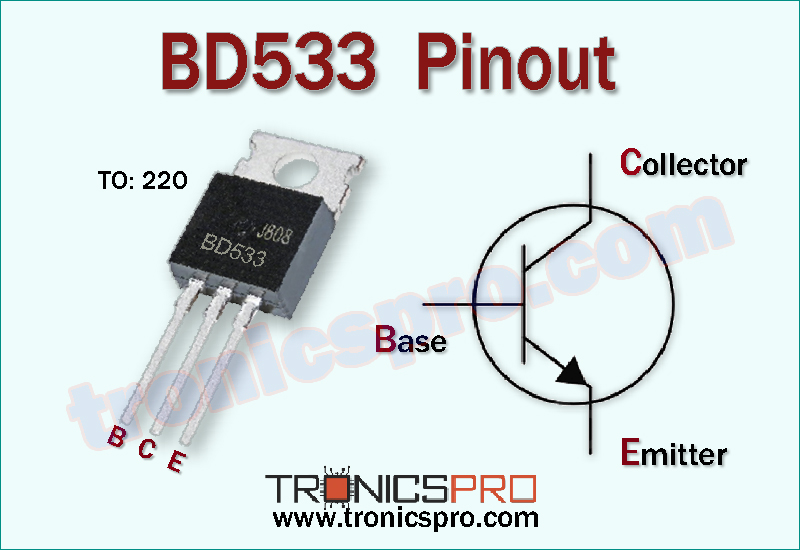

Pinout of BD533

Key Features

• NPN silicon power transistor.
• High collector current handling capability.
• Excellent linear gain and switching efficiency.
• Suitable for audio and power amplifier circuits.
• Robust TO-220 package for effective heat dissipation.
• Complementary to BD534 PNP transistor.
• Reliable thermal and electrical stability.

Specifications/Characteristics

• Collector-Emitter Voltage (Vceo): 60V.
• Collector-Base Voltage (Vcbo): 80V.
• Emitter-Base Voltage (Vebo): 5V.
• Collector Current (Ic): 8A maximum.
• Total Power Dissipation (Ptot): 80W at Tc = 25°C.
• DC Current Gain (hFE): 40 to 250 at Ic = 3A, Vce = 2V.
• Transition Frequency (fT): 3 MHz typical.
• Operating and Storage Junction Temperature Range: -65°C to +150°C.
• Package Type: TO-220.

Pin Configuration

Comparison BD533 (NPN) vs BD534 (PNP)

The BD533 is an NPN power transistor, while the BD534 is its PNP complementary device. Both share nearly identical specifications, including voltage, current, and power dissipation ratings. In amplifier configurations, the BD533 handles the positive half of the waveform, while the BD534 manages the negative half, providing balanced output with low distortion. Their complementary operation ensures efficient performance in audio, switching, and power regulation applications.

More Circuit Layouts

Key Applications of BD533 NPN Transistor

• Audio power amplifier circuits.
• DC motor driver circuits.
• Voltage regulator and power supply systems.
• Power switching and control applications.
• Push-pull amplifier stages with BD534.
• Industrial and consumer electronic equipment.

PNP Complimentary Transistor

• The PNP complementary transistor for BD533 is BD534.
  Together, they form a matched complementary pair widely used in audio amplifier output stages for efficient and symmetrical performance.

Equivalent Transistors of BD533 NPN Transistor

• Possible equivalents or substitutes include BD435, BD437, BD239, 2N6488, TIP41, and MJE3055, depending on circuit voltage and current specifications.

(Pin configuration of some transistors mentioned here may different from BD533).

Datasheet of BD533 NPN Transistor

Click the following Button to download the datasheet of BD533 Transistor :
