The BD377 pinout defines the key electrical connections of this reliable NPN power transistor, widely used in audio amplifier stages, voltage regulation, and medium-power switching circuits. Designed in a TO-126 package, BD377 offers excellent thermal stability and mechanical strength. It is a perfect match for its complementary PNP transistor BD376, making it ideal for push-pull or class-AB amplifier configurations where high linearity and low distortion are required.
Introduction to BD377 NPN Transistor
The BD377 NPN transistor is a medium-power silicon device designed for amplification and general-purpose switching. With its collector-emitter voltage of 60V, collector-base voltage of 75V, and a collector current of 2A, it provides a balance between performance, efficiency, and reliability.
Its TO-126 plastic package enables effective heat dissipation, allowing the transistor to handle up to 25 watts of power under proper heat-sink conditions. This makes BD377 suitable for various audio amplifier output stages, driver circuits, and regulated power supplies.
BD377 is part of the BD3xx transistor family, known for complementary operation, stable gain, and long-term durability. When paired with BD378, it can deliver symmetrical waveforms in amplifier designs, ensuring distortion-free sound reproduction and balanced current drive.

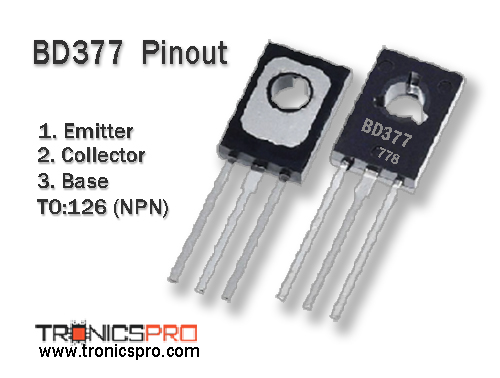

BD377 NPN Transistor

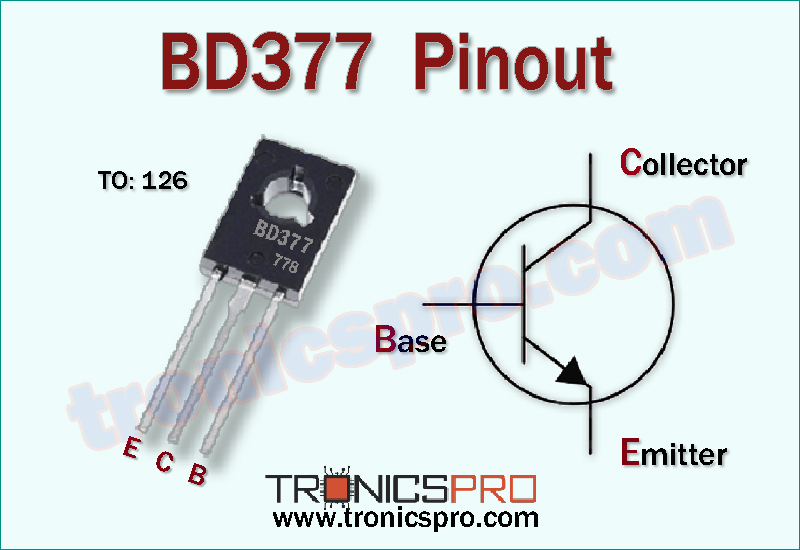

Pinout of BD377
Understanding the BD377 Pinout Configuration
The BD377 pinout follows a Emitter-Collector-Base (E-C-C) sequence when viewed from the front (flat side facing forward, leads downward). This layout simplifies PCB design and allows straightforward substitution with other TO-126 NPN devices.
Pin Configuration of BD377 Pinout
| Pin# | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
Key Features of BD377 Transistor
- Medium-power NPN transistor in TO-126 package
- Complementary to BD376 PNP transistor
- Capable of handling moderate voltage and current loads
- High DC gain for effective signal amplification
- Stable and linear performance for audio applications
- Suitable for switching, regulation, and driver circuits
- Reliable thermal characteristics under continuous operation
BD377 Transistor Datasheet and Specifications
- Collector-Emitter Voltage (Vce): 60V
- Collector-Base Voltage (Vcb): 75V
- Emitter-Base Voltage (Veb): 5V
- Collector Current (Ic): 2A
- Total Power Dissipation (Ptot): 25W
- DC Current Gain (hFE): 40 to 160
- Transition Frequency (fT): 3 MHz (typical)
- Operating Junction Temperature: -55°C to +150°C
- Package Type: TO-126, through-hole
These specifications indicate BD377’s suitability for medium-load amplification and signal-driven control where linear response and efficiency are required.
Working Principle of BD377 NPN Transistor
As an NPN transistor, BD377 allows current flow from collector to emitter when a small base current is applied. In amplifier circuits, it operates in the active region, where it converts a small input signal into a larger output signal.
For switching, the transistor toggles between cutoff (off) and saturation (on) states, effectively controlling the power supplied to connected loads such as relays, LEDs, or DC motors. Its fast response and low saturation voltage make it a good fit for audio frequency stages, driver circuits, and PWM control.
More Circuit Layouts
Typical Applications of BD377
- Audio amplifier output and driver stages
- Motor control and servo amplifiers
- Power supply regulator circuits
- Switching and control systems
- Signal and voltage amplification
- Inverter circuits and oscillators
PNP Complementary Transistor
The PNP complementary transistor of BD377 is BD376. Together they form a well-matched pair used in push-pull output amplifiers and class-AB driver circuits. This combination enhances efficiency by allowing one transistor to amplify the positive half of a waveform while the other handles the negative half, ensuring smooth operation and minimal crossover distortion.
Equivalent Transistors and Alternatives
When selecting an equivalent, ensure that voltage, current, and package type align with your circuit requirements.
Comparison Summary: BD377 vs BD378
The BD377 and BD378 are both NPN silicon transistors belonging to the same BD3xx family, designed for medium-power amplification and switching applications. While they share similar package style and general electrical behavior, the BD378 offers higher voltage and power ratings, making it suitable for more demanding circuits.
The BD377 transistor has a collector-emitter voltage (Vce) of 60V, collector-base voltage (Vcb) of 75V, and a maximum power dissipation of 25W. It is ideal for standard audio amplifier stages, driver circuits, and regulated supply sections where moderate voltage and thermal load are involved.
In contrast, the BD378 transistor can withstand higher voltage and power, featuring a Vce of 60V, Vcb of 75V, and power dissipation (Pc) up to 25W. This makes BD378 more capable in circuits operating at slightly higher supply voltages or where transients and peak power demands occur frequently.
Functionally, both transistors share similar gain characteristics and can often be interchanged depending on the circuit’s voltage limits. However, the BD378 provides a broader safety margin for voltage spikes and heat dissipation, making it a more rugged and versatile choice in higher-performance amplifier outputs or medium-load switching systems.
In summary, BD377 is best suited for medium-voltage audio and driver circuits, offering reliable performance within 45V operation, whereas BD378 extends the same characteristics to higher voltage (60V) and enhanced power handling (25W) levels. Designers seeking improved durability and tolerance against voltage surges will find BD378 a superior upgrade over BD377 without changing the circuit layout, as both devices share the same TO-126 package and pinout configuration.
Frequently Asked Questions (FAQ)
What is the BD377 transistor used for?
It’s used in audio amplifiers, driver circuits, and power regulation applications where stable current gain is required.
What type of transistor is BD377?
BD377 is an NPN silicon transistor designed for medium-power switching and signal amplification.
What is the BD377 pinout?
The BD377 pinout (front view) is: Pin 1 = Emitter, Pin 2 = Collector, Pin 3 = Base.
What is the complementary transistor for BD377?
The complementary PNP transistor is the BD378.
Can I replace BD377 with BD437 or TIP41C?
Yes, both can work as substitutes in circuits requiring higher voltage or similar gain, though circuit conditions should be verified.
Conclusion
The BD377 transistor is a dependable NPN power transistor offering excellent performance for audio, driver, and switching circuits. Its TO-126 package, moderate voltage handling (60V), and 2A collector current capacity make it suitable for numerous medium-power designs.
When paired with its PNP counterpart BD378, it enables balanced and efficient amplification, making it a preferred choice for class-AB amplifiers and power driver applications. Designers seeking a compact and robust transistor for linear and switching operations will find BD377 a practical, affordable, and thermally efficient option.
Datasheet of BD377 NPN Transistor
Click the following Button to download the datasheet of BD377 Transistor :
