The BC177 is a widely used PNP bipolar transistor designed for low-noise, low-level signal amplification in analog and audio circuits. In this detailed guide, we cover the complete BC177 pinout, key features, specifications, internal working, common applications, and suitable equivalents to help hobbyists, students, and engineers integrate it into various small-signal electronic designs.
Introduction
The BC177 is a general-purpose PNP transistor from the BC107–BC177 family, known for reliable low-noise performance and stable electrical characteristics. Its compact TO-18 metal can package allows efficient heat dissipation, making it ideal for audio preamplifiers, low-frequency amplifiers, and switching applications. It is commonly used in analog circuits requiring low current and moderate voltage handling.

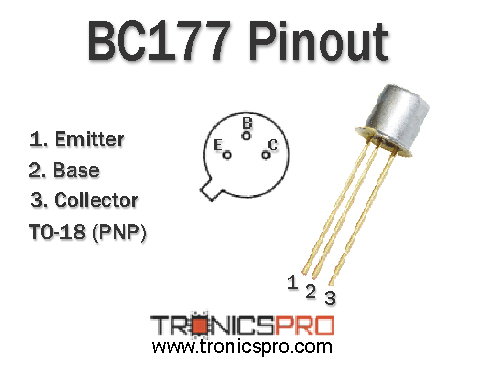

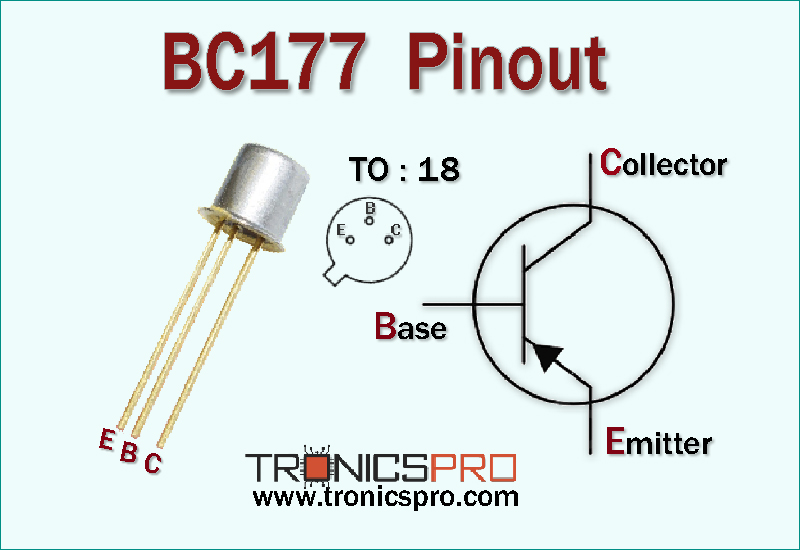

Pin Configuration / Pinout of BC177 Transistor
Understanding the BC177 Pinout Configuration
The BC177 uses a classic TO-18 metal can package, consisting of three terminals: emitter, base, and collector.
| Pin# | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
Note: DATASHEET DOWNLOAD button is provided end of this article.
BC177 Key Features
- PNP transistor designed for small-signal applications
- Low-noise performance suitable for audio and analog circuits
- Stable gain characteristics across temperature variations
- High-frequency capability for RF and low-level signal stages
- Reliable metal-can package for durability
- Suitable for switching and amplification tasks
- Ideal for low-power analog design
BC177 Specifications/Characteristics
- Transistor type: PNP bipolar junction transistor
- Collector-emitter voltage (Vceo): –45V
- Collector-base voltage (Vcbo): –50V
- Emitter-base voltage (Vebo): –5V
- Continuous collector current (Ic): –100mA
- Maximum collector current (Icm): 200mA
- Total power dissipation (Ptot): 300mW
- Maximum junction temperature (Tj): 175°C
- Storage temperature range (Tstg): –55°C to +125°C
- DC current gain (hFE): 125 to 260
- Transition frequency (fT): 200MHz
- Package type: TO-18 metal can
Key Applications of BC177 Transistor
- Audio preamplifiers
- Small-signal analog amplification
- Low-level sensor interface circuits
- Switching circuits for low current loads
- Oscillators and waveform generators
- Low-frequency RF stages
- Hobby and educational projects
BC177 Equivalent / Alternatives
(Verify pin compatibility before using substitutions)
Suitable equivalent and replacement transistors include:
More Circuit Layouts
Working Principle of BC177
The BC177 operates as a PNP transistor, where a small current flowing out of the base terminal controls a much larger current between the emitter and collector. When the base is pulled more positive relative to the emitter, the transistor enters forward-active mode and amplifies the input signal. Its high gain and low noise characteristics make it excellent for audio preamps, low-frequency amplifiers, and sensitive analog stages.
Frequently Asked Questions (FAQ)
Q1: Is BC177 interchangeable with BC557?
Yes, BC557 is a common plastic alternative with similar characteristics.
Q2: Is BC177 good for audio applications?
Absolutely, its low-noise design makes it ideal for preamplifiers and small-signal stages.
Q3: Can BC177 be used for switching circuits?
Yes, it works well in low-power switching and control circuits.
Q4: Does BC177 support high frequencies?
Yes, with an fT of around 200MHz, it is suitable for high-frequency small-signal tasks.
Q5: What package does BC177 use?
It comes in a durable TO-18 metal can package.
Conclusion
The BC177 is a versatile PNP transistor ideal for low-level signal amplification and small-signal switching applications. Its low noise, stable gain, and reliable TO-18 package make it a popular choice in analog, audio, and RF electronics. By understanding the BC177 pinout, specifications, and operation, designers can confidently integrate it into a wide range of low-power circuits.
Datasheet of BC177 Transistor
Click the following Button below to download the datasheet of BC177 :
