Battery Level Monitor 12V

Introduction

Batteries and their chargers are an integral part of our modern, electronic-driven lives. Ensuring the longevity of your 12V battery is crucial, as both overcharging and undercharging can significantly shorten its lifespan. This guide will walk you through building a simple yet effective 12V battery level monitor circuit using LM3914 IC to help you maintain your battery’s optimal charge and maximize its life. 🔋

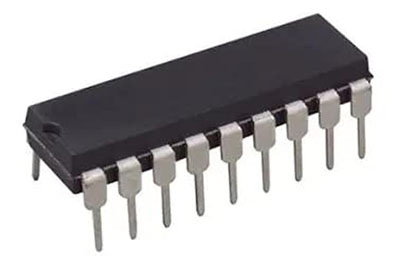

The core of this project is the LM3914 IC, a versatile monolithic integrated circuit designed to sense analog voltage levels and provide a linear analog display. This chip can drive up to 10 LEDs, creating a visual representation of the battery’s charge. A key feature of the LM3914 is its ability to switch between a moving dot display and a bar graph display with a single pin, offering flexible visual feedback. Moreover, the IC has built-in current control, which eliminates the need for external current-limiting resistors for the LEDs. This clever design not only simplifies the circuit but also makes it highly efficient, allowing the entire system to operate on very low power.

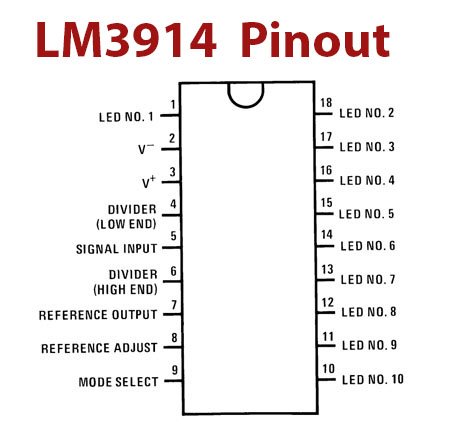

LM3914 Pinout

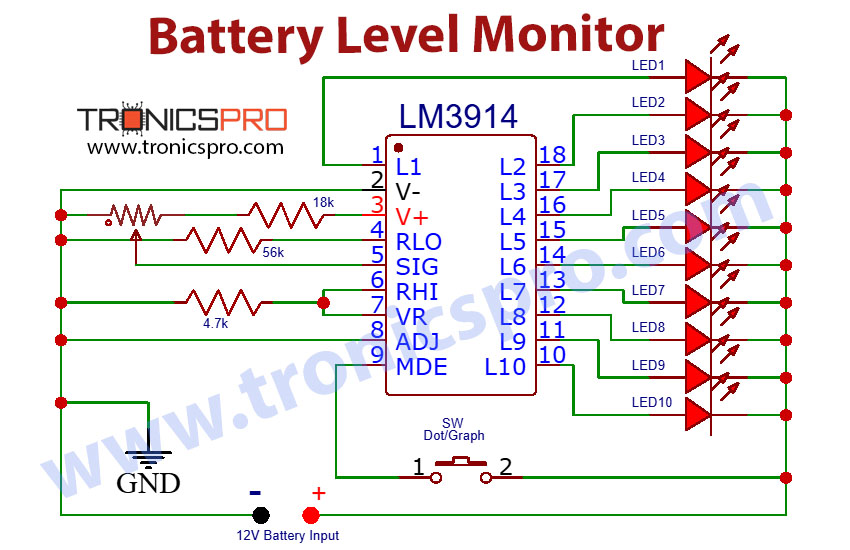

Circuit Diagram of Battery Level Monitor 12V

This project can be built using a few basic components. The circuit diagram of this project is shown below.

More Circuit Layouts

Components List of Battery Level Monitor 12V

Following is the list of all components used in this project:

• LM3914 IC x 1
• LEDs x 10
• 18k Resister x 1
• 56k Resister x 1
• 4.7k Resister x 1
• 10k Variable Resister x 1

Working Explanation of Battery Level Monitor 12V

The LM3914 is the central component of this battery level monitor, acting as a dot/bar display driver. This powerful integrated circuit senses the voltage of the 12V battery and, in turn, controls a series of up to ten LEDs (D1-D10). The display mode is user-selectable: you can create a bar graph display by connecting PIN 9 to the positive supply, or a single dot display by leaving it disconnected. The entire circuit is powered directly by the input battery supply, with the LEDs providing a clear visual representation of the current battery level. 🔋

Application and Uses

The 12V battery level monitor circuit, powered by the LM3914 IC, has a wide range of practical applications and uses beyond simply checking a car battery. Its ability to provide an instant, visual representation of voltage levels makes it a versatile tool for both DIY enthusiasts and professionals.

Key Applications and Uses:

• Automotive and Marine: Integrate the circuit into a car, motorcycle, or boat dashboard to provide a continuous, at-a-glance battery health check. This is critical for preventing an unexpected dead battery, especially in remote or off-grid situations.
• Renewable Energy Systems: Use it to monitor the charge level of batteries in solar power systems, ensuring they don’t get overcharged by the solar panels or run down completely.
• Portable Power Packs: It is perfect for DIY power banks or portable battery packs used for camping, tools, or other devices. The LED bar graph offers a quick and intuitive way to see how much power is left.
• Uninterruptible Power Supplies (UPS): Implement this circuit in a small-scale UPS to monitor the backup battery, providing an early warning before a power outage drains the system.
• Educational Projects: Due to its simple design and clear functionality, the LM3914 circuit is an ideal project for students and hobbyists to learn about voltage sensing, analog-to-digital conversion, and visual display drivers.
• General-Purpose Voltage Meter: With a few simple modifications to the input resistors, you can adapt the circuit to measure and display the voltage of other power sources, such as power supplies or even smaller batteries (e.g., 9V).
