The BC140 is a medium-power NPN bipolar junction transistor widely used in audio driver stages, power switching circuits, and general-purpose amplification. In this article, we explain its working principle, features, applications, specifications, and the BC140 pinout so designers can use it effectively in various analog and switching designs. This guide includes everything from its electrical ratings to suitable equivalents for easy reference.
Introduction
The BC140 is a robust NPN transistor designed for medium-power operations where higher current handling and improved thermal dissipation are required. Its strong electrical characteristics make it ideal for driver circuits, low-power audio amplifiers, and switching loads up to 1A. Engineers prefer the BC140 because of its excellent reliability, stable gain, and wide operating temperature range.

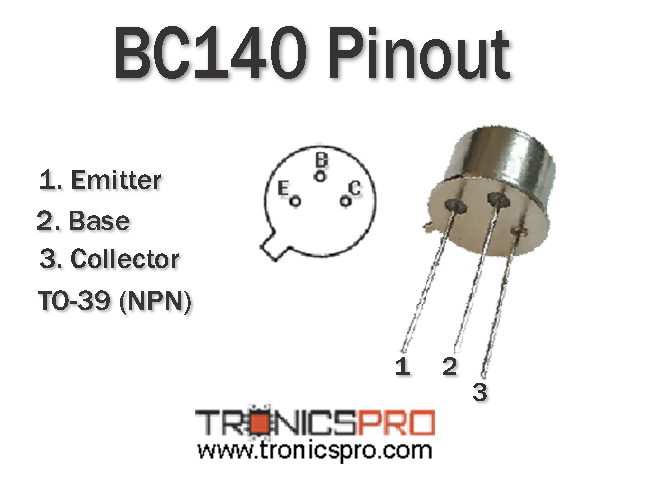

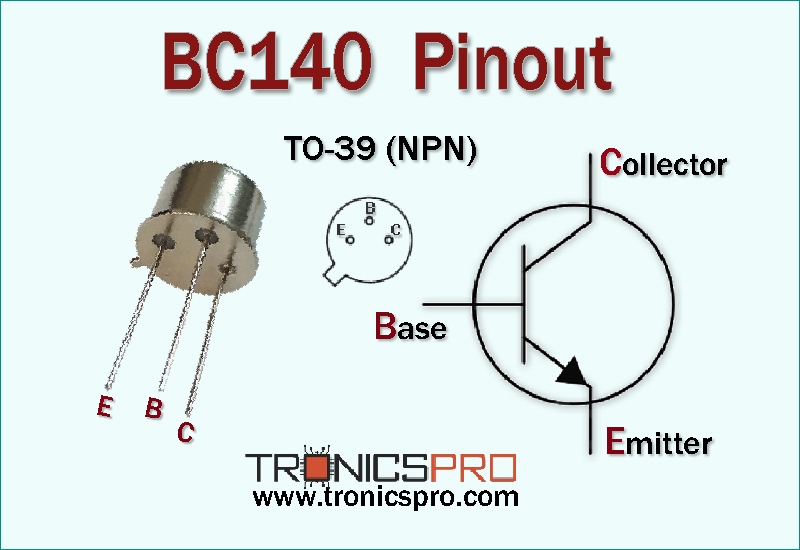

Pin Configuration / Pinout of BC140 Transistor
Understanding the BC140 Pinout Configuration
The BC140 typically comes in a TO-39 package, offering better power dissipation than small-signal transistors. With the flat side facing you and leads downward:
| Pin# | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
This pin configuration allows easy placement on heat-dissipating surfaces and ensures reliable performance in medium-power applications.
Note: DATASHEET DOWNLOAD button is provided end of this article.
BC140 Key Features
- Medium-power handling capability
- Suitable for audio driver and switching circuits
- High thermal stability for continuous operation
- Wide gain range for flexible circuit design
- Rugged TO-39 package for improved heat dissipation
BC140 Specifications/Characteristics
- Collector-Emitter Voltage (Vceo): 40V
- Collector-Base Voltage (Vcbo): 80V
- Emitter-Base Voltage (Vebo): 7V
- Collector Current (Ic): 1A
- Peak Collector Current (Icm): 1.5A
- Total Power Dissipation (Ptot): 3.7W
- Junction Temperature (Tj): 175°C
- Storage Temperature Range (Tstg): −65°C to 150°C
- DC Current Gain (hFE): 100–250
- Transition Frequency (fT): 50MHz
Key Applications of BC140 Transistor
- Audio driver and pre-driver stages
- Medium-power switching circuits
- Relay and solenoid drivers
- Low-power amplifier stages
- Signal processing and control circuits
- Hobby electronics and educational projects
BC140 Equivalent / Alternatives
(Verify pin compatibility before using substitutions)
Equivalent Transistors: BC141, BC142
Possible Alternatives: BD139, BD135, 2N2219A (with adjustments)
More Circuit Layouts
Working Principle of BC140
The BC140 operates as a standard NPN transistor where a small base current controls a much larger current flowing from collector to emitter. Due to its medium-power capability and higher dissipation rating, it works efficiently in driver stages and switching circuits. It can operate in linear mode for amplification or in saturation/cutoff for switching functions, making it versatile for both analog and digital applications.
Frequently Asked Questions (FAQ)
Q1: What is the BC140 used for?
It is mainly used in medium-power amplification and switching applications.
Q2: What is the package type of BC140?
It is typically found in a TO-39 package.
Q3: Is BC140 suitable for audio circuits?
Yes, it is commonly used in audio driver and pre-driver stages.
Q4: What are good replacements for BC140?
BC141, BC142, BD139, and BD135 are suitable alternatives depending on voltage and gain needs.
Conclusion
The BC140 is a reliable medium-power NPN transistor well-suited for audio, amplification, and switching applications requiring higher current handling and stable gain. Its rugged construction, high voltage ratings, and wide temperature tolerance make it valuable for professional and hobby-grade circuit designs.
Datasheet of BC140 Transistor
Click the following Button below to download the datasheet of BC140 :
