Introduction
The 2SB817 is a powerful silicon PNP power transistor widely used in high-power amplification and switching circuits. It is engineered to be the complementary pair of the 2SD1047 NPN transistor, making it a perfect match for audio amplifier output stages. A key feature of the 2SB817 is its high power handling capability, with a maximum collector-base voltage (VCBO) of -160V and a continuous collector current (IC) of -12A. This robust design allows it to handle significant loads and operate reliably in high-voltage applications. The transistor is housed in a durable TO-3P package, which is excellent for heat dissipation, ensuring stable performance even under strenuous conditions.
The 2SB817 is a cornerstone component in high-power audio amplifiers, where it contributes to a clean and powerful output. When used in a push-pull configuration with the 2SD1047, it efficiently amplifies both the positive and negative halves of the audio signal, which is crucial for delivering high-fidelity sound. The transistor’s high DC current gain (hFE), with a maximum value of 200, enables a small input signal to control a large output, simplifying circuit design. It has a high transition frequency (fT) of 15MHz, which allows it to be used in various high-speed switching circuits.

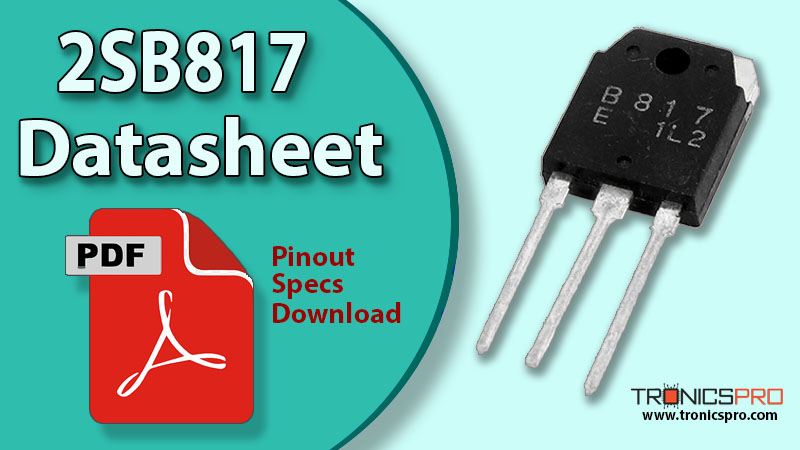

2SB817 PNP Transistor
Beyond audio, the 2SB817 is a versatile power switch. Its ability to handle high voltage and current makes it suitable for use in DC-DC converters, switching regulators, and as a motor driver. It is also frequently used in power supply and inverter circuits where a reliable and efficient power switch is needed. The combination of its power handling, thermal efficiency, and compatibility with its NPN counterpart solidifies its reputation as a go-to transistor for power electronics projects.
2SB817 Pinout
2SB817 PNP Transistor Key Features
The 2SB817 is a high-power silicon PNP transistor that serves as a complementary partner to the 2SD1047 NPN transistor. It’s built for demanding applications, especially in power amplification and switching.
Key Features
- High Current Capability
- High Power Dissipation
- High Voltage Rating
- High DC Current Gain (hFE)
- Fast Switching Speed
- Complementary Pair
- Robust Package TO-3P package
2SB817 Transistor Specifications/Characteristics
| Characterstics | Rating (Max) |
|---|---|
| Max Collector Current(IC): | –12A |
| Max Collector-Emitter Voltage (VCE): | –140V |
| Max Collector-Base Voltage (VCB): | –160V |
| Max Emitter-Base Voltage (VEBO): | 6V |
| Max Collector Dissipation (Pc): | 100 Watt |
| Max Transition Frequency (fT): | 15 MHz |
| Minimum & Maximum DC Current Gain (hFE): | 60 To 200 |
| Max Storage & Operating temperature: | -40 to +150 Centigrade |
More Circuit Layouts
Key Applications of 2SB817 PNP Transistor
- High power audio amplifier
- Power Supply Applications
- Motor Driver Applications
- Battery Charger Applications
- Inverter Applications
- Drive load of up to -12A
NPN Complimentary Transistor
NPN Complementary of 2SB817 Transistor is 2SD1047.
Equivalent Transistors of 2SB817
2SA2120, 2SA1986, 2SA1943, 2SA1516, 2SA2151, 2SB1162
Datasheet of 2SB817 PNP Transistor
Click the following Button below to download the datasheet of 2SB817 PNP Transistor :
