NE5532 Pinout, Equivalent, Application, Datasheet

The NE5532 is a high-performance dual low-noise operational amplifier widely used in audio processing, preamplifiers, mixers, filters, and precision analog circuits. In this complete guide, you will learn everything about the NE5532 op-amp including pinout, features, specifications, working principle, applications, and equivalents. This IC is known for its low noise, high slew rate, and excellent audio fidelity, making it a popular choice in both professional audio systems and DIY electronic projects.

Introduction

The NE5532 is a dual op-amp designed for low-noise, low-distortion amplification. It offers superior audio performance due to its low input noise and high gain bandwidth. Ideal for high-quality audio equipment, the NE5532 is a standard component used by audio engineers in mixers, equalizers, headphone amplifiers, and active filters.

This IC provides stable performance even in complex analog circuits, and its dual-channel design allows two operational amplifiers in a single 8-pin package, making it compact, efficient, and cost-effective.

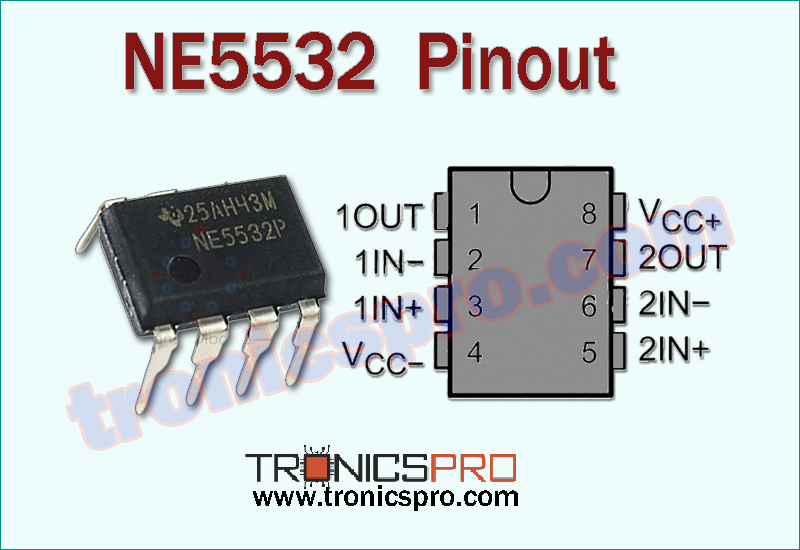

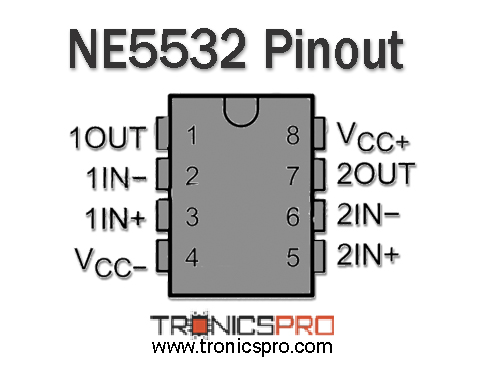

Pin Configuration / Pinout of NE5532 Power Amplifier IC

Understanding the NE5532 Pinout Configuration

Note: DATASHEET DOWNLOAD button is provided end of this article.

NE5532 Key Features

• Dual operational amplifier in one package
• Very low noise for high-fidelity audio applications
• Low distortion signal output
• High slew rate for fast signal response
• Stable performance in unity gain configuration
• Wide compatibility with analog audio circuits
• Robust design with internal frequency compensation
• High output drive capability

NE5532 Specifications/Characteristics

• Type: Dual low-noise operational amplifier
• Supply voltage range: ±5V to ±15V
• Input noise voltage density: extremely low for audio use
• Gain bandwidth product: approximately 10MHz
• Slew rate: around 9V/µs
• Input offset voltage: typically low
• Input bias current: low, suitable for precision circuits
• Total harmonic distortion: extremely low
• Output drive current: capable of driving low-impedance loads
• Operating temperature range: 0°C to 70°C
• Package types: DIP-8, SOIC-8, and others

Key Applications of NE5532 Power Amplifier IC

• High-fidelity audio preamplifiers
• Active filters and equalizers
• Headphone amplifiers
• Audio mixers and sound processing units
• Instrumentation amplifiers
• Signal conditioning circuits
• Active crossover networks
• Low-noise audio recording systems
• Oscillator and waveform generator circuits

NE5532 Equivalent ICs / Alternatives

(Verify pin compatibility before using substitutions)

Common alternatives and equivalents include:

• NE5532P
• LM4562
• NJM5532
• OPA2134
• TL072 (lower-cost alternative)
• JRC4558 (commonly used in audio pedals)
• MC33078

More Circuit Layouts

Working Principle of NE5532

The NE5532 works as a dual operational amplifier where each internal op-amp amplifies the voltage difference between its inputs. It uses a high-performance differential input stage and a stable output stage, allowing clean, low-noise amplification across audio and analog frequencies.

Its high slew rate enables it to reproduce fast-changing audio signals with clarity, while the low noise architecture ensures minimal signal interference. This makes the NE5532 ideal for preamplifiers, audio filters, and precision signal conditioning.

Frequently Asked Questions (FAQ)

Q1: Is NE5532 good for audio?
Yes, it is one of the best low-noise op-amps for audio applications.

Q2: Can the NE5532 be used as a microphone preamp?
Yes, it performs excellently in low-noise microphone preamps.

Q3: What power supply does it need?
It supports a dual supply (e.g., ±12V) or single supply configurations.

Q4: What is the main advantage of NE5532?
Its extremely low noise and low distortion make it ideal for high-quality sound systems.

Q5: Can it be used in filters or equalizers?
Yes, it is commonly used in active filters, tone controls, and equalizers.

Conclusion

The NE5532 is a professional-grade dual low-noise operational amplifier IC widely used in audio and precision analog circuits. Its low distortion, high slew rate, and stable performance make it a preferred choice for sound engineers and electronics enthusiasts. Whether you’re designing a preamp, mixer, or audio filter, the NE5532 delivers reliable, high-quality results every time.

Datasheet of NE5532 Power Amplifier IC

Click the following Button below to download the datasheet of NE5532 :
