BD648 Pinout, Equivalent, Applications, Datasheet

The BD648 PNP Darlington transistor is a high-power semiconductor device designed for audio amplifiers, motor control, and regulated power supplies. It provides exceptionally high current gain and stable thermal performance, making it a perfect match for demanding power and signal control systems.
In this complete technical guide, we’ll cover the BD648 pinout, datasheet specifications, applications, working principle, complementary NPN transistor BD647, and more.

Introduction to BD648 PNP Transistor

The BD648 belongs to the Darlington transistor family, featuring two PNP transistors connected internally to achieve very high current amplification. With a collector current rating of up to 8 A and collector-emitter voltage of –100 V, it’s widely used in audio amplifier output stages, DC motor controllers, and power regulation circuits.

Housed in a TO-220 package, the BD648 offers outstanding thermal efficiency and durability for high-power designs. Its robust performance under high loads makes it suitable for both industrial and consumer electronic devices.

When paired with its complementary NPN transistor BD647, it forms a balanced push-pull pair ideal for Class-B and Class-AB amplifiers, delivering clear audio output and precise current control.

BD648 PNP Transistor

Pinout of BD648

Understanding the BD648 Pinout Configuration

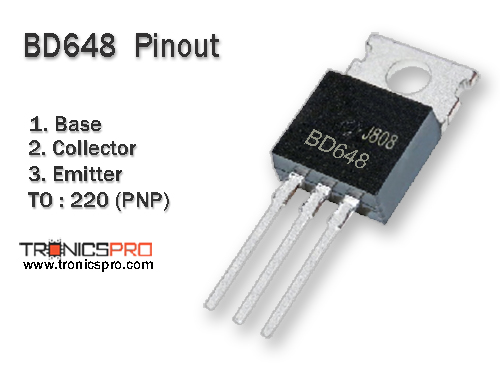

The BD648 pinout follows the standard TO-220 package layout. When viewed from the front (with markings visible and leads downward), the sequence is Base, Collector, Emitter.

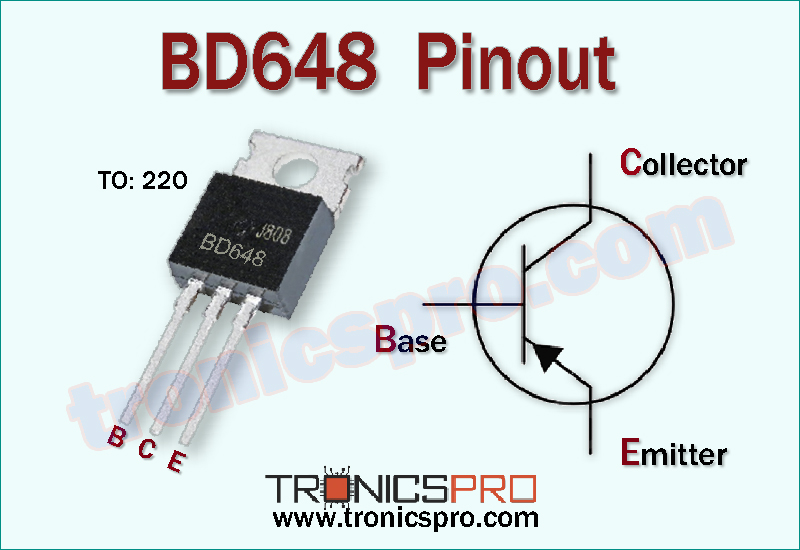

Pin Configuration of BD648 Pinout

The metal tab is internally connected to the collector, and it should be insulated when mounted on a shared heatsink.

Key Features of BD648 Transistor

• High DC current gain (Darlington configuration)
• Continuous collector current up to 8 A
• High power dissipation for rugged applications
• Complementary to BD647 NPN transistor
• Low saturation voltage VCE(sat) and efficient switching
• Reliable TO-220 package for easy mounting
• Suitable for audio, motor, and voltage regulator circuits

BD648 Transistor Datasheet and Specifications

• Collector–Emitter Voltage (VCEO) = –100 V
• Collector–Base Voltage (VCBO) = –120 V
• Emitter–Base Voltage (VEBO) = –5 V
• Continuous Collector Current (IC) = –8 A
• Peak Collector Current (ICM) = –12 A
• Power Dissipation (PC) = 62.5 W at Tc = 25 °C
• DC Current Gain (hFE) = 750 min at Ic = 3 A
• Collector–Emitter Saturation Voltage (VCE(sat)) = 2.0 V max
• Base–Emitter Voltage (VBE(on)) = 2.5 V max
• Thermal Resistance (Junction-to-Case) = 2 °C/W
• Operating Junction Temperature = –65 °C to +150 °C

These specifications ensure high-efficiency current amplification, making the BD648 transistor datasheet a go-to reference for power circuit design.

Working Principle of BD648 PNP Transistor

The BD648 operates as a PNP Darlington transistor, consisting of two PNP junctions internally cascaded. When a small current flows out of the base, it allows a much larger current to flow from emitter to collector. This configuration yields extremely high current gain while maintaining thermal stability.

In amplifier circuits, the BD648 conducts during the negative half-cycle of an input signal, while the BD647 (NPN) handles the positive half-cycle. Together they form a complementary push-pull pair, ensuring linear and distortion-free amplification.

In switching applications, the BD648 functions as a high-current switch, activated when the base potential is sufficiently lower than the emitter.

More Circuit Layouts

Typical Applications of BD648

• Audio amplifier output and driver stages
• Motor control and relay driver circuits
• Regulated power supply designs
• Inverter and UPS control stages
• Battery charger and regulator units
• General-purpose high-current switching circuits

NPN Complementary Transistor

The BD647 NPN transistor is the direct complementary device to the BD648 PNP transistor.
Together they form a Darlington push-pull pair that delivers symmetrical operation for audio and power control circuits.

Both devices share nearly identical specifications except for polarity. Their matched performance ensures balanced signal amplification, reduced crossover distortion, and stable thermal characteristics.

Equivalent Transistors and Alternatives

The BD648 PNP Darlington transistor can be replaced by several equivalents with similar voltage and current ratings:

• BD650 (higher-voltage variant)
• TIP125 / TIP126 (general-purpose PNP Darlington alternatives)
• MJ11016 (industrial grade replacement)
• BD646 (closely rated PNP power device)

Before substitution, ensure that the voltage rating, current capacity, and gain values match the circuit’s requirements.

Comparison BD648 vs BD647 Complementary Transistors

The BD648 PNP and BD647 NPN are complementary Darlington transistors, engineered to function together in power and amplifier circuits.

The BD648 conducts current from emitter to collector, while the BD647 conducts from collector to emitter. When used together, they handle both signal polarities, producing a balanced and efficient push-pull output.

Both share equal ratings. 100 V collector-emitter voltage, 8 A collector current, and 62.5 W power dissipation, making them interchangeable in symmetrical amplifier designs.

Frequently Asked Questions (FAQ)

What is the BD648 transistor used for?

The BD648 PNP transistor is used for audio amplifier outputs, motor drivers, and high-current switching where large gain and thermal stability are essential.

What type of transistor is BD648?

It is a PNP Darlington power transistor designed for high current amplification with low base drive.

What is the BD648 pin configuration?

Pin 1 = Base, Pin 2 = Collector, Pin 3 = Emitter. The tab is internally connected to the collector.

What is the complementary transistor for BD648?

The BD647 NPN is the complementary transistor to BD648.

Can I use TIP125 instead of BD648?

Yes, TIP125 can replace BD648 in many low-to-medium-power applications, but always check voltage and current ratings.

Conclusion

The BD648 PNP Darlington transistor is a powerful and reliable component for audio amplification, power switching, and motor control applications.
Its high current gain, robust TO-220 package, and thermal efficiency make it a solid choice for engineers and hobbyists alike.

When paired with its NPN complement BD647, it forms a perfectly balanced transistor pair suitable for push-pull amplifier stages and regulated power designs.
The BD648 remains one of the most trusted Darlington PNP devices for modern electronics projects.
