The BC179 is a PNP small-signal bipolar transistor widely used in audio, low-noise, and general-purpose amplification circuits. In this article, we explain its working, features, applications, specifications, and the BC179 pinout to help designers efficiently integrate it into various analog and switching designs. Everything from its characteristics to equivalents is included for quick engineering reference.
Introduction
The BC179 is a general-purpose PNP transistor designed for low-noise amplification and versatile small-signal applications. It performs exceptionally well in audio frequency stages, driver circuits, and switching sections where stable gain and reliable thermal performance are required. Its compact TO-92 package and wide hFE range make it suitable for hobby, educational, and professional electronic designs.
Pin Configuration / Pinout of BC179 Transistor
Understanding the BC179 Pinout Configuration

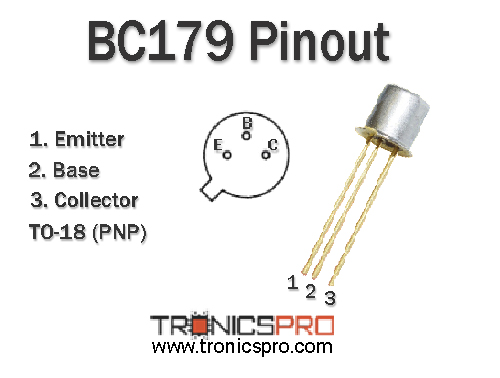

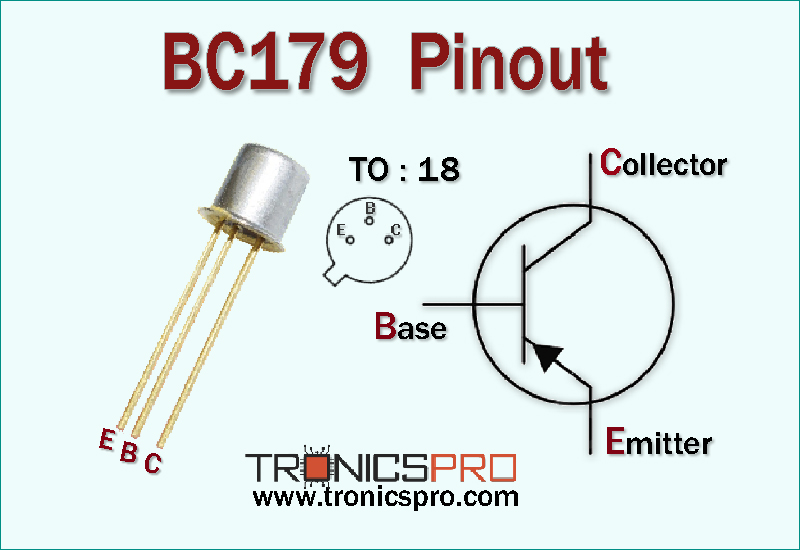

The BC179 comes in a TO-92 package with the following pin configuration (flat side facing you, leads downward):
| Pin# | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
Note: DATASHEET DOWNLOAD button is provided end of this article.
BC179 Key Features
- Low-noise amplification capability
- High-frequency response for RF and AF applications
- Suitable for general-purpose analog circuits
- Stable performance across temperature variations
- Compact TO-92 package for easy PCB integration
BC179 Specifications/Characteristics
- Collector-Emitter Voltage (Vceo): −20V
- Collector-Base Voltage (Vcbo): −25V
- Emitter-Base Voltage (Vebo): −5V
- Collector Current (Ic): −100mA
- Peak Collector Current (Icm): 200mA
- Total Power Dissipation (Ptot): 300mW
- Junction Temperature (Tj): 175°C
- Storage Temperature Range (Tstg): −55°C to 175°C
- DC Current Gain (hFE): 125–260
- Transition Frequency (fT): 200MHz
Key Applications of BC179 Transistor
- Audio preamplifier stages
- Low-noise signal processing circuits
- General-purpose switching
- AM/FM radio stages
- Driver stages for analog electronics
- Sensor interface circuits
- Hobby and educational electronics
BC179 Equivalent / Alternatives
(Verify pin compatibility before using substitutions)
Equivalent Transistors:
Possible Alternatives:
More Circuit Layouts
Working Principle of BC179
The BC179 operates as a standard PNP transistor where a small current flowing out of the base controls a larger current from emitter to collector. Its high gain and low internal noise make it efficient in preamplification stages. The transistor remains in the active region for analog amplification and shifts to saturation or cutoff during switching operations. Its fast response and stable junction characteristics improve performance across a wide range of small-signal conditions.
Frequently Asked Questions (FAQ)
Q1: What is the BC179 used for?
It is primarily used for low-noise amplification and small-signal switching applications.
Q2: What is the package type of BC179?
It comes in a TO-92 through-hole package.
Q3: Is the BC179 interchangeable with BC177 or BC178?
Yes, they are close equivalents with similar characteristics but always check voltage and gain ratings.
Q4: Can BC179 be used in audio circuits?
Yes, it performs well in AF stages such as preamplifiers and tone-control circuits.
Conclusion
The BC179 is a versatile PNP small-signal transistor known for its low-noise performance, wide gain range, and reliable operation in analog circuits. Whether used in audio preamps, RF stages, or switching applications, its high frequency response and consistent behavior make it a dependable choice for both modern and legacy circuit designs.
Datasheet of BC179 Transistor
Click the following Button below to download the datasheet of BC179 :
